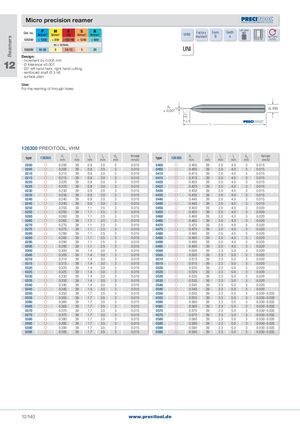

Общий каталог PRECITOOL - страница 145

Reamers Micro precision reamer Cat. no. PN/mm2 MN/mm2 KHB S NN/mm2N/mm2 VHM FactorystandardFormB Teeth Left twist4 right hand 126300 < 1300 < 850 >180 HB < 1200 < 600 Through hole cutting vc = m/min. 126300 10-20 5 10-15 5 20 UNI Design: 12 - increment by 0.005 mm- Ø tolerance ±0.001- 20° left hand helix, right hand cutting - reinforced shaft Ø 3 h6 - surface plain Use: For the reaming of through holes. d2± 0,001 d2 (h6) l2 l4 l1 126300 PRECITOOL, VHM type 126300 d1mm l1 l2 l4 d2mmmmmmmmfemalemm/U type 126300 d1mm l1 l2 l4 d2mmmmmmmm femalemm/U 0200  0.200 39 0.9 2.0 3 0.010 0400  0.400 39 2.0 4.0 3 0.015 0205  0.205 39 0.9 2.0 3 0.010 0405  0.405 39 2.0 4.0 3 0.015 0210  0.210 39 0.9 2.0 3 0.010 0410  0.410 39 2.0 4.0 3 0.015 0215  0.215 39 0.9 2.0 3 0.010 0415  0.415 39 2.0 4.0 3 0.015 0220  0.220 39 0.9 2.0 3 0.010 0420  0.420 39 2.0 4.0 3 0.015 0225  0.225 39 0.9 2.0 3 0.010 0425  0.425 39 2.0 4.0 3 0.015 0230  0.230 39 0.9 2.0 3 0.010 0430  0.430 39 2.0 4.0 3 0.015 0235  0.235 39 0.9 2.0 3 0.010 0435  0.435 39 2.0 4.0 3 0.015 0240  0.240 39 0.9 2.0 3 0.010 0440  0.440 39 2.0 4.0 3 0.015 0245  0.245 39 0.9 2.0 3 0.010 0445  0.445 39 2.0 4.0 3 0.015 0250  0.250 39 1.1 2.5 3 0.010 0450  0.450 39 2.0 4.0 3 0.020 0255  0.255 39 1.1 2.5 3 0.010 0455  0.455 39 2.0 4.0 3 0.020 0260  0.260 39 1.1 2.5 3 0.010 0460  0.460 39 2.0 4.0 3 0.020 0265  0.265 39 1.1 2.5 3 0.010 0465  0.465 39 2.0 4.0 3 0.020 0270  0.270 39 1.1 2.5 3 0.010 0470  0.470 39 2.0 4.0 3 0.020 0275  0.275 39 1.1 2.5 3 0.010 0475  0.475 39 2.0 4.0 3 0.020 0280  0.280 39 1.1 2.5 3 0.010 0480  0.480 39 2.0 4.0 3 0.020 0285  0.285 39 1.1 2.5 3 0.010 0485  0.485 39 2.0 4.0 3 0.020 0290  0.290 39 1.1 2.5 3 0.010 0490  0.490 39 2.0 4.0 3 0.020 0295  0.295 39 1.1 2.5 3 0.010 0495  0.495 39 2.0 4.0 3 0.020 0300  0.300 39 1.4 3.0 3 0.010 0500  0.500 39 2.3 5.0 3 0.020 0305  0.305 39 1.4 3.0 3 0.010 0505  0.505 39 2.3 5.0 3 0.020 0310  0.310 39 1.4 3.0 3 0.010 0510  0.510 39 2.3 5.0 3 0.020 0315  0.315 39 1.4 3.0 3 0.010 0515  0.515 39 2.3 5.0 3 0.020 0320  0.320 39 1.4 3.0 3 0.010 0520  0.520 39 2.3 5.0 3 0.020 0325  0.325 39 1.4 3.0 3 0.010 0525  0.525 39 2.3 5.0 3 0.020 0330  0.330 39 1.4 3.0 3 0.010 0530  0.530 39 2.3 5.0 3 0.020 0335  0.335 39 1.4 3.0 3 0.010 0535  0.535 39 2.3 5.0 3 0.020 0340  0.340 39 1.4 3.0 3 0.010 0540  0.540 39 2.3 5.0 3 0.020 0345  0.345 39 1.4 3.0 3 0.010 0545  0.545 39 2.3 5.0 3 0.020 0350  0.350 39 1.7 3.5 3 0.015 0550  0.550 39 2.3 5.0 3 0.030 - 0.035 0355  0.355 39 1.7 3.5 3 0.015 0555  0.555 39 2.3 5.0 3 0.030 - 0.035 0360  0.360 39 1.7 3.5 3 0.015 0560  0.560 39 2.3 5.0 3 0.030 - 0.035 0365  0.365 39 1.7 3.5 3 0.015 0565  0.565 39 2.3 5.0 3 0.030 - 0.035 0370  0.370 39 1.7 3.5 3 0.015 0570  0.570 39 2.3 5.0 3 0.030 - 0.035 0375  0.375 39 1.7 3.5 3 0.015 0575  0.575 39 2.3 5.0 3 0.030 - 0.035 0380  0.380 39 1.7 3.5 3 0.015 0580  0.580 39 2.3 5.0 3 0.030 - 0.035 0385  0.385 39 1.7 3.5 3 0.015 0585  0.585 39 2.3 5.0 3 0.030 - 0.035 0390  0.390 39 1.7 3.5 3 0.015 0590  0.590 39 2.3 5.0 3 0.030 - 0.035 0395  0.395 39 1.7 3.5 3 0.015 0595  0.595 39 2.3 5.0 3 0.030 - 0.035 12/140 www.precitool.de
