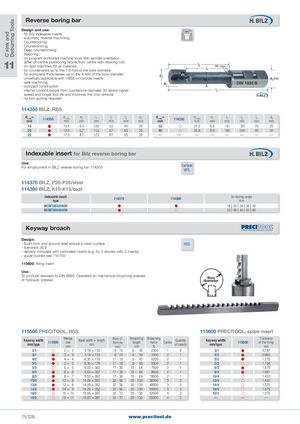

Общий каталог PRECITOOL - страница 133
Навигация
Reverse boring bar
- for Bilz indexable inserts - automatic reverse machining Counterboring Countersinking Deep countersinking Reboring
| - on progra (after off- - on rigid m | m controlle centre positi achines for | d machine oning rebo all materia | tools with re from c ls | spindle o entre with | rientatio drawing | n cut) | R5 | max. | |||||||
| - for count - for workp - universall - safe mac - compact - internal c speed an - no tool gu 114350 d | ersinks up to iece thickne y applicable hining construction oolant suppl d longer too iding requir BILZ, RB | the 1.6-f sses up to with HSS y from co llifeandi ed S d | old of the the 4-fol E or carbi untersink mproves t | bore diam doftheb de inserts diameter 3 he chip re l | eter ore diam 0 allows moval l | eter higher l | d | d | d | l | l | l | (h6) d | ||
| 1 ma× mm | 114350 | 1 min mm | e1 mm | 1 mm | 2 mm | 4 mm | 2 mm | 1 ma× mm | 114350 | 1 min mm | e1 mm | 1 mm | 2 mm | 4 mm | 2 mm |
| 18 | | 10�5 | 4�0 | 108 | 52 | 40 | 25 | 33 | | 21�0 | 6�5 | 141 | 85 | 70 | 25 |
| 20 | | 13�0 | 3�7 | 113 | 57 | 45 | 25 | 40 | | 25�0 | 8�0 | 160 | 100 | 85 | 32 |
| 26 | | 17�0 | 4�7 | 123 | 67 | 55 | 25 | — | — | — | — | — | — | — | — |
Indexable insert for Bilz reverse boring bar
Use: For employment in BILZ reverse boring bar 114350 Carbide WPL
114370 BILZ, P20-P25/steel
114380 BILZ, K10-K15/cast
| Indexable insert type | 114370 | 114380 | for boring range mm | ||||
| MCMT060204EN | | | 18 | 20 | 24 | 26 | 30 |
| MCMT090304EN | | | 33 | 36 | 40 | 43 | 48 |
Keyway broach
Design: - tooth form and ground relief ensure a clean surface HSS - tolerance JS 9 - delivery complete with calibrated inserts (e.g. for 3 strokes with 2 inserts) - guide bushes see 115700
115600: fitting insert
Use: To produce keyways to DIN 6885. Operated on mechanical broaching presses Bore or hydraulic presses diameter
115500 PRECITOOL, HSS 115600 PRECITOOL, spare insert
| Keyway width mm/type | 115500 | Wedge size mm | Back width × length mm | Borex from-to mm | Broaching length mm | Broaching force N | Cycles | Quantity of inserts | Keyway width mm/type | 115600 | Thickness of the lining mm |
| 2/1 | | 2 × 2 | 3�18 × 133 | 6 - 10 | 6 - 30 | 2300 | 1 | 0 | 3/1 | | 0�787 |
| 3/1 | | 3 × 3 | 3�18 × 133 | 6 - 10 | 6 - 30 | 3300 | 2 | 1 | 4/2 | | 0�965 |
| 4/2 | | 4 × 4 | 6�35 × 178 | 11 - 19 | 8 - 43 | 5200 | 2 | 1 | 5/2 | | 1�270 |
| 5/2 | | 5 × 5 | 6�35 × 178 | 11 - 19 | 8 - 43 | 9300 | 2 | 1 | 5/3 | | 1�194 |
| 5/3 | | 5 × 5 | 9�53 × 302 | 17 - 36 | 10 - 64 | 7600 | 2 | 1 | 6/3 | | 1�575 |
| 6/3 | | 6 × 6 | 9�53 × 302 | 17 - 36 | 10 - 64 | 8600 | 2 | 1 | 8/3 | | 1�981 |
| 8/3 | | 8 × 7 | 9�53 × 302 | 17 - 36 | 10 - 64 | 18000 | 2 | 1 | 10/4 | | 1�422 |
| 10/4 | | 10 × 8 | 14�29 × 352 | 32 - 56 | 20 - 150 | 36000 | 3 | 2 | 12/4 | | 1�422 |
| 12/4 | | 12 × 8 | 14�29 × 352 | 32 - 56 | 20 - 150 | 48000 | 3 | 2 | 14/4 | | 1�575 |
| 14/4 | | 14 × 9 | 14�29 × 352 | 32 - 56 | 20 - 150 | 50000 | 3 | 2 | 16/5 | | 1�575 |
| 16/5 | | 16 × 10 | 19�05 × 387 | 52 - 72 | 20 - 150 | 52000 | 4 | 3 | 18/5 | | 1�575 |
| 18/5 | | 18 × 11 | 19�05 × 387 | 52 - 72 | 20 - 150 | 55000 | 4 | 3 | — | — | — |
