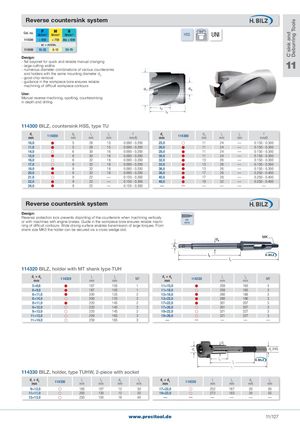

Reverse countersink system
| Cat. no. | P N/mm2 | M N/mm2 | N N/mm2 | HSS | 180° | UNI |
| 114300 | < 850 | < 750 | Alu < 600 | |||
| vc = m | /min. | |||||
| 114300 | 15-22 | 8-12 | 20-70 |
Design: - flat bayonet for quick and reliable manual changing - large cutting widths - numerous diameter combinations of various countersinks and holders with the same mounting diameter d - good chip removal 3 - guidance in the workpiece bore ensures reliable machining of difficult workpiece contours
Use: Manual reverse machining, spotting, countersinking in depth and drilling
114300 BILZ, countersink HSS, type TU
11
d d 1 3
l 2 l 1
| d1 mm | 114300 | d3 mm | l1 mm | l2 mm | f mm/U | d1 mm | 114300 | d3 mm | l1 mm | l2 mm | f mm/U |
| 10,0 | | 5 | 28 | 15 | 0�090 - 0�200 | 25,0 | | 11 | 24 | — | 0�150 - 0�300 |
| 11,0 | | 5 | 28 | 15 | 0�090 - 0�200 | 26,0 | | 11 | 24 | — | 0�150 - 0�300 |
| 14,0 | | 6 | 30 | 16 | 0�090 - 0�200 | 28,0 | | 11 | 24 | — | 0�150 - 0�300 |
| 15,0 | | 6 | 30 | 16 | 0�090 - 0�200 | 30,0 | | 11 | 24 | — | 0�150 - 0�300 |
| 16,0 | | 8 | 32 | 18 | 0�090 - 0�200 | 32,0 | | 13 | 26 | — | 0�150 - 0�300 |
| 17,0 | | 8 | 32 | 18 | 0�090 - 0�200 | 33,0 | | 13 | 26 | — | 0�150 - 0�300 |
| 18,0 | | 8 | 32 | 18 | 0�090 - 0�200 | 36,0 | | 13 | 26 | — | 0�150 - 0�300 |
| 20,0 | | 8 | 32 | 18 | 0�090 - 0�200 | 38,0 | | 17 | 28 | — | 0�250 - 0�400 |
| 21,0 | | 9 | 22 | — | 0�150 - 0�300 | 40,0 | | 17 | 28 | — | 0�250 - 0�400 |
| 22,0 | | 9 | 22 | — | 0�150 - 0�300 | 48,0 | | 19 | 32 | — | 0�250 - 0�400 |
| 24,0 | | 9 | 22 | — | 0�150 - 0�300 | — | — | — | — | — | — |
Reverse countersink system
Design: Reversal protection lock prevents disjointing of the countersink when machining vertically or with machines with engine brakes. Guide in the workpiece bore ensures reliable machi- MK shank ning of difficult contours. Wide driving surface enables transmission of large torques. From shank size MK3 the holder can be secured via a cross-wedge slot.
114320 BILZ, holder with MT shank type TUH
| d1× d3 mm | 114320 | l1 mm | l2 mm | MT | d1× d3 mm | 114320 | l1 mm | l2 mm | MT |
| 5×6,6 | | 167 | 105 | 1 | 11×15,0 | | 259 | 165 | 3 |
| 6×9,0 | | 167 | 105 | 1 | 11×18,0 | | 259 | 165 | 3 |
| 8×11,0 | | 200 | 125 | 2 | 13×18,0 | | 280 | 186 | 3 |
| 8×14,0 | | 200 | 125 | 2 | 13×22,0 | | 280 | 186 | 3 |
| 9×11,0 | | 220 | 145 | 2 | 17×22,0 | | 301 | 207 | 3 |
| 9×12,0 | | 220 | 145 | 2 | 17×26,0 | | 301 | 207 | 3 |
| 9×13,0 | | 220 | 145 | 2 | 19×22,0 | | 321 | 227 | 3 |
| 11×13,0 | | 259 | 165 | 3 | 19×26,0 | | 321 | 227 | 3 |
| 11×14,0 | | 259 | 165 | 3 | — | — | — | — | — |
d 3
d d (h6)
1 2 l 4 l 2
l 114330 BILZ, holder, type TUHW, 2-piece with socket 1
| d1× d3 mm | 114330 | l1 mm | l2 mm | d2 mm | l4 mm | d1× d3 mm | 114330 | l1 mm | l2 mm | d2 mm | l4 mm |
| 9×12,0 | | 185 | 107 | 12 | 30 | 17×22,0 | | 252 | 167 | 20 | 50 |
| 11×11,0 | | 205 | 130 | 12 | 35 | 19×22,0 | | 272 | 183 | 20 | 55 |
| 13×13,0 | | 230 | 150 | 16 | 40 | — | — | — | — | — | — |
