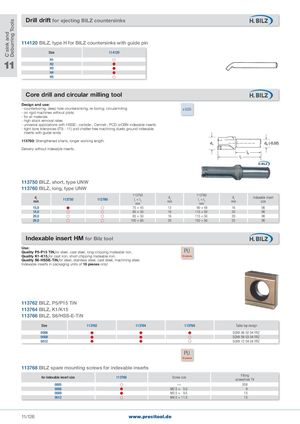

Drill drift for ejecting BILZ countersinks
114120 BILZ, type H for BILZ countersinks with guide pin
Size 114120
| 11 | H1 | |
| H2 | | |
| H3 | | |
| H4 | | |
| H5 | |
Core drill and circular milling tool Design and use: - counterboring, deep hole countersinking, re-boring, circularmilling ±0,05 - on rigid machines without pilots
- for all materials - high stock removal rates - universal applications with HSSE-, carbide-, Cermet-, PCD orCBN indexable inserts - tight bore tolerances (IT9 - 11) and chatter-free machining dueto ground indexable inserts with guide lands
113760: Strengthened shank, longer working length. Delivery without indexable inserts.
113750 BILZ, short, type UNW
113760 BILZ, long, type UNW
| d1 mm | 113750 | 113760 | 113750 l1× I3 mm | d2 mm | 113760 l1× I3 mm | d2 mm | Indexable insert size |
| 15,0 | | | 75 × 45 | 12 | 90 × 48 | 16 | 06 |
| 18,0 | | | 85 × 50 | 16 | 115 × 50 | 20 | 06 |
| 20,0 | | | 85 × 50 | 16 | 115 × 50 | 20 | 06 |
| 26,0 | | | 100 × 60 | 20 | 150 × 56 | 25 | 06 |
Indexable insert HM for Bilz tool
Use: PU Quality P5-P15 TiN,for steel, cast steel, long-chipping malleable iron. Quality K1-K15,for cast iron, short chipping malleable iron. 10 pieces Quality S6-HSSE-TiN,for steel, stainless steel, cast steel, machining steel. Indexable inserts in packaging units of 10 pieces only!
113762 BILZ, P5/P15 TiN
113764 BILZ, K1/K15
113766 BILZ, S6/HSS-E-TiN
| Size | 113762 | 113764 | 113766 | Table top design |
| 0006 | | | | SCHX 06 02 04 FRZ |
| 0009 | | | | SCHX 09 03 04 FRZ |
| 0012 | | | | SCHX 12 04 04 FRZ |
PU
10 pieces
113768 BILZ spare mounting screws for indexable inserts
| for indexable insert size | 113768 | Screw size | Fitting screwdriver TX |
| 0005 | | — | 208 |
| 0006 | | M2�5 × 5�0 | 9 |
| 0009 | | M3�5 × 9�5 | 15 |
| 0012 | | M4�5 × 11�5 | 15 |
