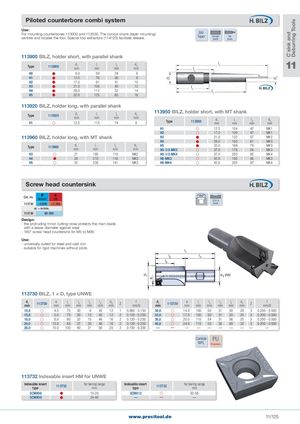

Piloted counterbore combi system
For mounting counterbores 113000 and 113500. The conical shank (taper mounting) Bilz centres and locates the tool. Special tool extractors (114120) facilitate release. Taper
113900 BILZ, holder short, with parallel shank
Straight MK shank shank
l 11
| Type | 113900 | d1 mm | l1 mm | l2 mm | d2 mm |
| H0 | | 9�0 | 59 | 24 | 6 |
| H1 | | 12�5 | 76 | 36 | 8 |
| H2 | | 17�0 | 91 | 41 | 10 |
| H3 | | 21�0 | 109 | 49 | 12 |
| H4 | | 28�0 | 112 | 52 | 14 |
| H5 | | 32�0 | 125 | 65 | 16 |
2
113920 BILZ, holder long, with parallel shank
113950 BILZ, holder short, with MT shank
| Type | 113920 | d1 mm | l1 mm | l2 mm | d2 mm |
| H1 | | 12�5 | 115 | 74 | 8 |
| 3960 Type | BILZ, holder 113960 | long, wit d1 mm | h MT sha l1 mm | nk l2 mm | d2 mm |
| H3 | | 21 | 185 | 110 | MK2 |
| H4 | | 28 | 210 | 116 | MK3 |
| H5 | | 32 | 235 | 141 | MK3 |
| Type | 113950 | d1 mm | l1 mm | l2 mm | d2 mm |
| H1 | | 12�5 | 104 | 42 | MK1 |
| H2 | | 17�0 | 109 | 47 | MK1 |
| H3 | | 21�0 | 132 | 57 | MK2 |
| H4 | | 28�0 | 155 | 61 | MK3 |
| H5 | | 32�0 | 168 | 74 | MK3 |
| H5-1/2-MK3 | | 37�0 | 178 | 84 | MK3 |
| H5-1/2-MK4 | | 37�0 | 203 | 85 | MK4 |
| H6-MK3 | | 42�0 | 180 | 86 | MK3 |
| H6-MK4 | | 42�0 | 205 | 87 | MK4 |
Screw head countersink
P K
Cat. no. N/mm2 HB
113730 <2,000 <1,100
vc = m/min. 113730 60-200 Design: - the protruding minor cutting-nose protects the main blade
with a lesser diameter against wear - 180° screw head countersink for M5 to M36
Use: - universally suited for steel and cast iron - suitable for rigid machines without pilots
113730 BILZ, 1 × D, type UNWE
| d | e | l | l | l | l | d | ||
| 1 | 113730 | 1 | 2 | 3 | 4 | 2 | Z | |
| mm | mm | mm | mm | mm | mm | mm | ||
| 10,0 | | 4�5 | 75 | 30 | 6 | 45 | 12 | 1 |
| 15,0 | | 5�0 | 75 | 30 | 13 | 45 | 12 | 2 |
| 18,0 | | 8�0 | 80 | 32 | 15 | 48 | 16 | 2 |
| 20,0 | | 10�0 | 85 | 37 | 20 | 48 | 16 | 2 |
| 26,0 | | 10�0 | 100 | 40 | 21 | 50 | 20 | 2 |
180° 1835 B shank
l 1 l l 2 4 l 3
| d | d | (h6) | |
| 1 | e | 2 |
| f | d | e | l | l | l | l | d | f | ||||
| 1 | 113730 | 1 | 2 | 3 | 4 | 2 | Z | |||||
| mm/U | mm | mm | mm | mm | mm | mm | mm | mm/U | ||||
| 0�060 - 0�150 | 30,0 | | 14�0 | 100 | 50 | 31 | 50 | 20 | 3 | 0�200 - 0�500 | ||
| 0�120 - 0�250 | 33,0 | | 17�0 | 100 | 50 | 31 | 50 | 20 | 3 | 0�200 - 0�500 | ||
| 0�120 - 0�250 | 36,0 | | 20�0 | 110 | 54 | 31 | 56 | 25 | 3 | 0�200 - 0�500 | ||
| 0�120 - 0�250 | 40,0 | | 24�0 | 115 | 55 | 36 | 60 | 32 | 3 | 0�200 - 0�500 | ||
| 0�150 - 0�300 | — | — | — | — | — | — | — | — | — | — |
Carbide PU WPL 10 pieces
113732 Indexable insert HM for UNWE
Indexable insert for boring range Indexable insert for boring range
| type | mm | type | mm | ||
| SCMX06 | | 10-20 | SCMX12 | | 50-58 |
| SCMX09 | | 24-46 | — | — | — |
