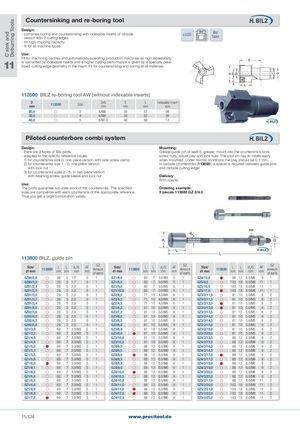

Общий каталог PRECITOOL - страница 129
Навигация
Countersinking and re-boring tool
180° Bilz - combines boring and countersinking with indexable inserts of carbide ±0,05 - version with 3 cutting edges Taper - for high chipping capacity - fit for all machine types
Use: 11 Fit for machining centres and automatically operating production machines as high repeatability is warranted by indexable inserts and a higher cutting performance is given by a specially developed cutting edge geometry in the insert. Fit for countersinking and boring at all materials.
113500 BILZ re-boring tool AW (without indexable inserts)
| D mm | 113500 | Size | D/G mm | E mm | L mm | Indexable insert size |
| 20,0 | | 3 | 5/M6 | 35 | 57 | 06 |
| 30,0 | | 4 | 6/M8 | 39 | 62 | 09 |
| 40,0 | | 5 | 8/M10 | 40 | 68 | 12 |
Piloted counterbore combi system
| Design: | Mounting: | |
| - there are 3 types of Bilz pilots | Grease guide pin at seat d grease, mount into the countersink´s bore, | |
| - adapted to the specific reference values: | screw nuts, adjust play and lock nuts. The pilot pin has to rotate easily 1 | |
| 1) for countersinks size 0, one-piece version with side screw clamp | when mounted. Under normal conditions the play should be 0.1 mm. | |
| 2) for countersinks size 1 - 5, one-piece version | In carbide countersinks (113050), a spacer is required between guide pins | |
| with lock nut | and carbide cutting edge! | |
| 3) for countersinks sizes 2 - 5, in two-piece version | ||
| with retaining screw, guide sleeve and lock nut | Delivery: | |
| With spacer. | ||
| Use: | ||
| The pilots guarantee accurate work of the countersinks. The specified | Ordering example: | |
| sizes are compatible with each countersink of the appropriate reference. | 5 pieces 113800 GZ 2/4.0 |
Thus you get a large combination variety.
113800 BILZ, guide pin
GZ GZ GZ
| Size/ | l | l | d /G AF | Size/ | l | l | d /G AF | Size/ | l | d /G l AF | ||||||
| 113800 | 1 | 2 | 2 | Amount | 113800 | 1 | 2 | 2 | Amount | 113800 | 1 | 2 2 | Amount | |||
| d1 mm | mm | mm | mm mm | d1mm | mm | mm | mm mm | d1 mm | mm | mm mm mm | ||||||
| of parts | of parts | of parts | ||||||||||||||
| GZ00/2,0 | | 28 | 5 1�7 | 0 | 1 | GZ1/8,0 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/13,0 | | 88 12 6�0/M6 | 9 | 1 |
| GZ00/3,0 | | 28 | 5 1�7 | 0 | 1 | GZ1/8,5 | | 60 | 7 3�0/M3 | 5 | 1 | GZ5/8,5 | | 103 18 8�0/M8 | 11 | 1 |
| GZ01/2,4 | | 28 | 5 2�0 | 0 | 1 | GZ1/9,0 | | 60 | 7 3�0/M3 | 5 | 1 | GZ5/16,5 | | 103 18 8�0/M8 | 11 | 1 |
| GZ01/2,5 | | 28 | 5 2�0 | 0 | 1 | GZ1/10,0 | | 60 | 7 3�0/M3 | 5 | 1 | GZ5/17,0 | | 103 18 8�0/M8 | 11 | 1 |
| GZ01/3,0 | | 28 | 5 2�0 | 0 | 1 | GZ2/4,0 | | 71 10 4,0/M4 | 6 | 1 | GZ3/2/11,0 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ01/3,2 | | 28 | 5 2�0 | 0 | 1 | GZ2/4,2 | | 71 10 4,0/M4 | 6 | 1 | GZ3/2/11,5 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ01/3,4 | | 28 | 5 2�0 | 0 | 1 | GZ2/4,5 | | 71 10 4,0/M4 | 6 | 1 | GZ3/2/12,0 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ01/4,0 | | 28 | 5 2�0 | 0 | 1 | GZ3/6,5 | | 81 10 5�0/M5 | 8 | 1 | GZ3/2/13,0 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ02/3,0 | | 28 | 5 2�5 | 0 | 1 | GZ3/7,0 | | 81 10 5�0/M5 | 8 | 1 | GZ3/2/13,5 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ02/4,0 | | 28 | 5 2�5 | 0 | 1 | GZ3/8,0 | | 81 10 5�0/M5 | 8 | 1 | GZ3/2/14,0 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ02/4,5 | | 28 | 5 2�5 | 0 | 1 | GZ3/8,5 | | 81 10 5�0/M5 | 8 | 1 | GZ3/2/14,5 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ02/5,0 | | 28 | 5 2�5 | 0 | 1 | GZ3/8,8 | | 81 10 5�0/M5 | 8 | 1 | GZ3/2/15,0 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ1/3,0 | | 60 | 7 3�0/M3 | 5 | 1 | GZ3/8,9 | | 81 10 5�0/M5 | 8 | 1 | GZ3/2/16,0 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ1/3,2 | | 60 | 7 3�0/M3 | 5 | 1 | GZ3/9,0 | | 81 10 5�0/M5 | 8 | 1 | GZ3/2/20,0 | | 81 10 5�0/M5 | 8 | 2 | |
| GZ1/4,5 | | 60 | 7 3�0/M3 | 5 | 1 | GZ3/10,0 | | 81 10 5�0/M5 | 8 | 1 | GZ4/2/13,5 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/4,8 | | 60 | 7 3�0/M3 | 5 | 1 | GZ3/10,5 | | 81 10 5�0/M5 | 8 | 1 | GZ4/2/15,0 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/5,0 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/6,0 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/16,0 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/5,3 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/6,5 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/16,5 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/5,5 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/8,0 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/17,0 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/5,8 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/8,5 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/17,5 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/6,0 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/8,9 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/18,0 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/6,1 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/9,0 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/19,0 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/6,2 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/10,0 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/20,0 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/6,4 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/10,5 | | 88 12 6�0/M6 | 9 | 1 | GZ4/2/22,0 | | 88 12 6�0/M6 | 9 | 2 | |
| GZ1/6,5 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/10,8 | | 88 12 6�0/M6 | 9 | 1 | GZ5/2/17,5 | | 88 12 8�0/M8 | 11 | 2 | |
| GZ1/6,6 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/11,0 | | 88 12 6�0/M6 | 9 | 1 | GZ5/2/20,0 | | 103 18 8�0/M8 | 11 | 2 | |
| GZ1/6,8 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/11,5 | | 88 12 6�0/M6 | 9 | 1 | GZ5/2/21,0 | | 103 18 8�0/M8 | 11 | 2 | |
| GZ1/6,9 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/12,0 | | 88 12 6�0/M6 | 9 | 1 | GZ5/2/22,0 | | 103 18 8�0/M8 | 11 | 2 | |
| GZ1/7,0 | | 60 | 7 3�0/M3 | 5 | 1 | GZ4/12,3 | | 88 12 6�0/M6 | 9 | 1 | GZ5/2/25,0 | | 103 18 8�0/M8 | 11 | 2 |
