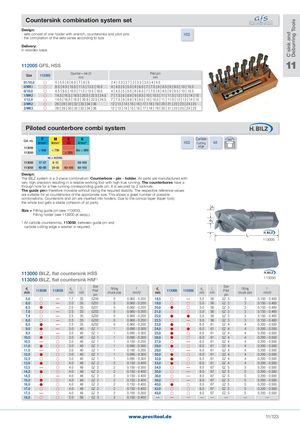

Общий каталог PRECITOOL - страница 128
Навигация
Countersink combination system set
- sets consist of one holder with wrench, countersinks and pilot pins HSS - the compilation of the sets varies according to size
Delivery: In wooden base.
11
112005 GFS, HSS
| Size | 112005 | Count | ersinkx mm | Pilot pin mm | ||||||||||||||||||||
| 01/10,0 | | 5 | 5�5 | 6 | 6�5 | 7 | 8 | 9 | 2�4 | 2�5 | 2�7 | 3 | 3�3 | 3�5 | 4 | 4�5 | ||||||||
| 0/MK1 | | 8�5 | 9�5 | 10�5 | 11�5 | 13�5 | 16�5 | 4 | 4�5 | 5 | 5�5 | 6 | 6�5 | 7 | 7�5 | 8 | 8�5 | 9 | 9�5 | 10 | 10�5 | |||
| 0/10,0 | | 8�5 | 9�5 | 10�5 | 11�5 | 13�5 | 16�5 | 4 | 4�5 | 5 | 5�5 | 6 | 6�5 | 7 | 7�5 | 8 | 8�5 | 9 | 9�5 | 10 | 10�5 | |||
| 1/MK2 | | 14�5 | 16�5 | 18�5 | 20�5 | 22�5 | 24�5 | 7 | 7�5 | 8 | 8�8 | 9 | 9�5 | 10 | 10�5 | 11 | 11�5 | 12 | 13 | 14 | 15 | |||
| 1/12,0 | | 14�5 | 16�5 | 18�5 | 20�5 | 22�5 | 24�5 | 7 | 7�5 | 8 | 8�8 | 9 | 9�5 | 10 | 10�5 | 11 | 11�5 | 12 | 13 | 14 | 15 | |||
| 2/MK2 | | 26 | 28 | 30 | 32 | 33 | 34 | 36 | 12 | 13 | 14 | 15 | 16 | 1 | 7 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | |
| 2/MK3 | | 26 | 28 | 30 | 32 | 33 | 34 | 36 | 12 | 13 | 14 | 15 | 16 | 1 | 7 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 |
Piloted counterbore combi system
| Cat. no. | P N/mm2 | M N/mm2 | K HB | N N/mm2 | HSS | Carbide Cutting | k8 | 180° |
| 113000 113050 | < 850 | < 750 | < 250 | Alu < 600 | edge | |||
| vc = m/min. | ||||||||
| 113000 | 17-27 | 8-12 | 50-100 | |||||
| 113050 | 40-90 | 20-50 | 40-100 | 60-150 |
Design: The BILZ system is a 3-piece combination: Counterbore - pin - holder. All parts are manufactured with very high precision resulting in a reliable working tool with high true running. The counterbores have a through hole for a free-running corresponding guide pin. It is secured by 2 locknuts. The guide pinis therefore movable without losing the required stability. The respective reference values are suitable for all countersinks of the appropriate size. This allows a great number of possible combinations. Countersink and pin are inserted into holders. Due to the conical taper (taper lock) the whole tool gets a stable cohesion of all parts. Size = Fitting guide pin (see 113800). Fitting holder (see 113900 et seqq.). 1) At carbide countersinks, 113050, between guide pin and carbide cutting edge a washer is required.
d 1
d 3
113000
113000 BILZ, flat countersink HSS
113050 BILZ, flat countersink HM 113050 1)
| d1 mm | 113000 | 113050 | d3 mm | l1 mm | Size Pilot pin | fitting chuck size | f mm/U | d1 mm | 113000 | 113050 | d3 mm | l1 mm | Size Pilot pin | fitting chuck size | f mm/U |
| 5,0 | | — | 1�7 | 35 | GZ00 | 0 | 0�060 - 0�200 | 18,5 | | — | 5�0 | 56 | GZ 3 | 3 | 0�150 - 0�400 |
| 6,0 | | — | 2�0 | 35 | GZ01 | 0 | 0�060 - 0�200 | 19,0 | | | 5�0 | 56 | GZ 3 | 3 | 0�150 - 0�400 |
| 6,5 | | — | 2�0 | 35 | GZ01 | 0 | 0�060 - 0�200 | 20,0 | | | 5�0 | 56 | GZ 3 | 3 | 0�150 - 0�400 |
| 7,0 | | — | 2�5 | 35 | GZ02 | 0 | 0�060 - 0�200 | 21,0 | | | 5�0 | 56 | GZ 3 | 3 | 0�150 - 0�400 |
| 7,4 | | — | 2�5 | 35 | GZ02 | 0 | 0�060 - 0�200 | 22,0 | | | 5�0 | 56 | GZ 3 | 3 | 0�150 - 0�400 |
| 8,0 | | — | 2�5 | 35 | GZ02 | 0 | 0�060 - 0�200 | 22,5 | | — | 5�0 | 56 | GZ 3 | 3 | 0�150 - 0�400 |
| 8,5 | | — | 2�5 | 35 | GZ02 | 0 | 0�060 - 0�200 | 23,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 9,0 | | — | 3�0 | 40 | GZ 1 | 1 | 0�090 - 0�300 | 24,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 9,5 | | — | 3�0 | 40 | GZ 1 | 1 | 0�090 - 0�300 | 25,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 10,0 | | | 3�0 | 40 | GZ 1 | 1 | 0�090 - 0�300 | 26,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 10,5 | — | | 3�0 | 40 | GZ 1 | 1 | 0�100 - 0�200 | 27,0 | | — | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 11,0 | | | 3�0 | 40 | GZ 1 | 1 | 0�090 - 0�300 | 28,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 11,5 | — | | 3�0 | 40 | GZ 1 | 1 | 0�100 - 0�200 | 29,0 | | — | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 12,0 | | | 3�0 | 40 | GZ 1 | 1 | 0�090 - 0�300 | 30,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 12,5 | | | 3�0 | 40 | GZ 1 | 1 | 0�090 - 0�300 | 32,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 13,0 | | | 4�0 | 48 | GZ 2 | 2 | 0�150 - 0�400 | 33,0 | | | 6�0 | 61 | GZ 4 | 4 | 0�200 - 0�500 |
| 13,5 | — | | 4�0 | 48 | GZ 2 | 2 | 0�100 - 0�300 | 34,0 | | — | 8�0 | 67 | GZ 5 | 5 | 0�200 - 0�500 |
| 14,0 | | | 4�0 | 48 | GZ 2 | 2 | 0�150 - 0�400 | 35,0 | | — | 8�0 | 67 | GZ 5 | 5 | 0�200 - 0�500 |
| 14,5 | | — | 4�0 | 48 | GZ 2 | 2 | 0�150 - 0�400 | 36,0 | | — | 8�0 | 67 | GZ 5 | 5 | 0�200 - 0�500 |
| 15,0 | | | 4�0 | 48 | GZ 2 | 2 | 0�150 - 0�400 | 38,0 | | — | 8�0 | 67 | GZ 5 | 5 | 0�200 - 0�500 |
| 16,0 | | | 4�0 | 48 | GZ 2 | 2 | 0�150 - 0�400 | 40,0 | | | 8�0 | 67 | GZ 5 | 5 | 0�200 - 0�500 |
| 17,0 | | | 4�0 | 48 | GZ 2 | 2 | 0�150 - 0�400 | 42,0 | | | 8�0 | 67 | GZ 5 | 5 | 0�200 - 0�500 |
| 17,5 | — | | 4�0 | 48 | GZ 2 | 2 | 0�100 - 0�300 | 45,0 | | | 8�0 | 67 | GZ 5 | 5 | 0�200 - 0�500 |
| 18,0 | | | 5�0 | 56 | GZ 3 | 3 | 0�150 - 0�400 | — | — | — | — | — | — | — | — |
