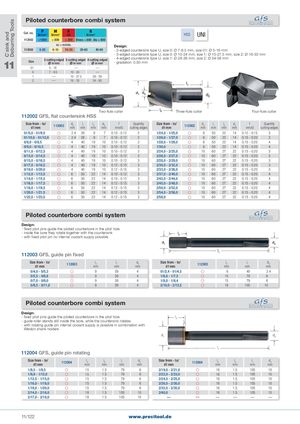

Общий каталог PRECITOOL - страница 127
Навигация
Piloted counterbore combi system
| P | M | K | N | UNI | |||
| 112002 | <1000 | < 800 | < 200 Brass < 600 Alu < 600 | ||||
| vc = m/min. | Design: | ||||||
| 112002 | 5-35 | 6-15 | 10-20 | 20-60 40-80 | - 2-edged countersink type U, size 0: Ø 7-9.5 mm, size 01: Ø 5-16 mm | ||
| - 3-edged countersink type U, size 0: Ø 10-24 mm, size 1: Ø 10-27.5 mm, size 2: Ø 16-33 mm | |||||||
| - 4-edged countersink type U, size 1: Ø 28-38 mm, size 2: Ø 34-58 mm | |||||||
| 11 | 2-cutting edged 3-cutting edged 4-cutting edged | ||||||
| Size | - gradation: 0.50 mm | ||||||
| in mm | in mm in mm | ||||||
| 01 | 5 - 16 |
| 0 | 7 - 9.5 | 10 - 24 | |
| 1 | 10 - 27.5 | 28 - 38 | |
| 2 | 16 - 33 | 34 - 85 |
| 12002 GFS, | flat cou | nters | ink | HSS | Two-fl | ute cutter | Thr | ee-flute cut | ter | Four | -flute cutter | ||||
| Size from - to/ d1 mm | 112002 | d3 mm | l1 mm | l2 mm | d2 mm | f mm/U | Quantity cutting edges | Size from - to/ d1 mm | 112002 | d3 mm | l1 mm | l2 mm | d2 mm | f mm/U | Quantity cutting edges |
| 01/5,0 - 01/9,5 | | 2�4 | 28 | 9 | 7 | 0�10 - 0�12 | 2 | 1/24,0 - 1/25,0 | | 6 | 50 | 22 | 14 | 0�12 - 0�15 | 3 |
| 01/10,0 - 01/12,0 | | 2�4 | 28 | 9 | 7 | 0�10 - 0�12 | 2 | 1/26,0 - 1/27,0 | | 6 | 50 | 22 | 14 | 0�15 - 0�20 | 3 |
| 0/8,0 - 0/8,5 | | 4 | 40 | 19 | 10 | 0�10 - 0�12 | 2 | 1/28,0 - 1/29,0 | | 6 | 50 | 22 | 14 | 0�15 - 0�20 | 4 |
| 0/9,0 - 0/10,5 | | 4 | 40 | 19 | 10 | 0�10 - 0�12 | 2 | 1/30,0 | | 6 | 50 | 22 | 14 | 0�15 - 0�20 | 4 |
| 0/11,0 - 0/12,5 | | 4 | 40 | 19 | 10 | 0�10 - 0�12 | 3 | 2/24,0 - 2/25,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 3 |
| 0/13,0 - 0/14,5 | | 4 | 40 | 19 | 10 | 0�10 - 0�12 | 3 | 2/26,0 - 2/27,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 3 |
| 0/15,0 - 0/16,5 | | 4 | 40 | 19 | 10 | 0�10 - 0�12 | 3 | 2/28,0 - 2/29,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 3 |
| 0/17,0 - 0/18,5 | | 4 | 40 | 19 | 10 | 0�12 - 0�15 | 3 | 2/30,0 - 2/32,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 3 |
| 0/19,0 - 0/20,0 | | 4 | 40 | 19 | 10 | 0�12 - 0�15 | 3 | 2/33,0 - 2/36,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 3 |
| 1/12,0 - 1/13,5 | | 6 | 50 | 22 | 14 | 0�10 - 0�12 | 3 | 2/37,0 - 2/40,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 4 |
| 1/14,0 - 1/15,5 | | 6 | 50 | 22 | 14 | 0�10 - 0�12 | 3 | 2/42,0 - 2/44,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 4 |
| 1/16,0 - 1/17,5 | | 6 | 50 | 22 | 14 | 0�12 - 0�15 | 3 | 2/45,0 - 2/48,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 4 |
| 1/18,0 - 1/19,5 | | 6 | 50 | 22 | 14 | 0�12 - 0�15 | 3 | 2/50,0 - 2/52,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 4 |
| 1/20,0 - 1/21,5 | | 6 | 50 | 22 | 14 | 0�12 - 0�15 | 3 | 2/54,0 - 2/56,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 4 |
| 1/22,0 - 1/23,5 | | 6 | 50 | 22 | 14 | 0�12 - 0�15 | 3 | 2/58,0 | | 10 | 60 | 27 | 22 | 0�15 - 0�20 | 4 |
Piloted counterbore combi system
Design: - fixed pilot pins guide the piloted counterbore in the pilot hole - inside the bore they rotate together with the countersink - with fixed pilot pin no internal coolant supply possible
112003 GFS, guide pin fixed
| Size from - to/ | l | l | d | Size from - to/ | l | l | d | ||
| 112003 | 2 | 1 | 2 | 112003 | 2 | 1 | 2 | ||
| d1 mm | mm | mm | mm | d1 mm | mm | mm | mm | ||
| 0/4,0 - 0/5,3 | | 9 | 59 | 4 | 01/2,4 - 01/4,5 | | 6 | 40 | 2�4 |
| 0/5,5 - 0/6,8 | | 9 | 59 | 4 | 1/6,6 - 1/7,5 | | 15 | 79 | 6 |
| 0/7,0 - 0/9,0 | | 9 | 59 | 4 | 1/8,0 - 1/8,4 | | 15 | 79 | 6 |
| 0/9,5 - 0/11,0 | | 9 | 59 | 4 | 2/10,0 - 2/13,5 | | 18 | 105 | 10 |
Piloted counterbore combi system Design: - fixed pilot pins guide the piloted counterbore in the pilot hole l - guide roller stands still inside the bore, while the countersink rotates 2
l - with rotating guide pin internal coolant supply is possible in combination with 3 Weldon shank holders d d 1 2
l 112004 GFS, guide pin rotating 1
| Size from - to/ | l | l | l | d | Size from - to/ | l | l | l | d | |||
| 112004 | 2 | 3 | 1 | 2 | 112004 | 2 | 3 | 1 | 2 | |||
| d1 mm | mm | mm | mm | mm | d1 mm | mm | mm | mm | mm | |||
| 1/8,5 - 1/9,5 | | 15 | 1�5 | 79 | 6 | 2/19,0 - 2/21,0 | | 18 | 1�5 | 105 | 10 | |
| 1/9,9 - 1/12,0 | | 15 | 1�5 | 79 | 6 | 2/22,0 - 2/23,0 | | 18 | 1�5 | 105 | 10 | |
| 1/12,5 - 1/15,0 | | 15 | 1�5 | 79 | 6 | 2/24,0 - 2/25,0 | | 18 | 1�5 | 105 | 10 | |
| 1/16,0 - 1/18,0 | | 15 | 1�5 | 79 | 6 | 2/26,0 - 2/30,0 | | 18 | 1�5 | 105 | 10 | |
| 1/19,0 - 1/20,0 | | 15 | 1�5 | 79 | 6 | 2/32,0 - 2/35,0 | | 18 | 1�5 | 105 | 10 | |
| 2/14,0 - 2/16,0 | | 18 | 1�5 | 105 | 10 | 2/40,0 | | 18 | 1�5 | 105 | 10 | |
| 2/17,0 - 2/18,0 | | 18 | 1�5 | 105 | 10 | — | — | — | — | — | — |
