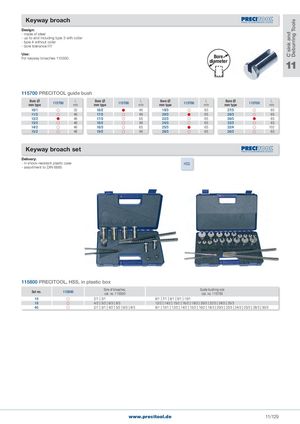

Общий каталог PRECITOOL - страница 134
Навигация
Keyway broach
- made of steel - up to and including type 3 with collar - type 4 without collar - bore tolerance H7
Use: Bore
For keyway broaches 115500. diameter 11
115700 PRECITOOL guide bush
| BoreX mm type | 115700 | l1 mm | BoreX mm type | 115700 | l1 mm | BoreX mm type | 115700 | l1 mm | BoreX mm type | 115700 | l1 mm |
| 10/1 | | 32 | 16/2 | | 46 | 19/3 | | 65 | 27/3 | | 65 |
| 11/2 | | 46 | 17/2 | | 46 | 20/3 | | 65 | 28/3 | | 65 |
| 12/2 | | 46 | 17/3 | | 65 | 22/3 | | 65 | 30/3 | | 65 |
| 13/2 | | 46 | 18/2 | | 46 | 24/3 | | 65 | 32/3 | | 65 |
| 14/2 | | 46 | 18/3 | | 65 | 25/3 | | 65 | 32/4 | | 102 |
| 15/2 | | 46 | 19/2 | | 46 | 26/3 | | 65 | 26/3 | | 65 |
Keyway broach set
Delivery: - in shock-resistant plastic case HSS - assortment to DIN 6885
115800 PRECITOOL, HSS, in plastic box
| Set no. | 115800 | Size of broaches, cat� no� 115500 | Guide cat� n | bushing size o� 115700 | ||||||||||||||||||
| 10 | | 2/1 | 3/1 | 6/1 | 7/1 | 8/1 | 9/1 | 10/1 | ||||||||||||||
| 18 | | 4/2 | 5/2 | 6/3 | 8/3 | 12/2 | 14/2 | 15/2 | 16/2 | 18/3 | 20/3 | 22/3 | 24/3 | 25/3 | ||||||||
| 40 | | 2/1 | 3/1 | 4/2 | 5/2 | 6/3 | 8/3 | 8/1 | 10/1 | 12/2 | 1 | 4/2 | 15/2 | 16/2 | 1 | 8/3 | 20/3 | 22/3 | 24/3 | 25/3 | 28/3 | 30/3 |
