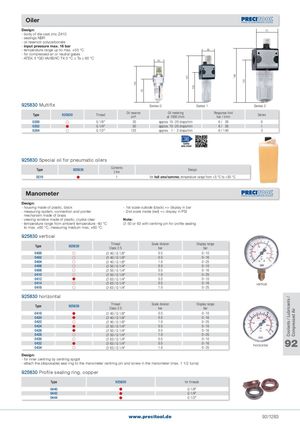

Общий каталог PRECITOOL - страница 1288

150 85 167 109 198 132 Coolants / Lubricants / Compressed Air Oiler Design: 70 - body of die-cast zinc Z410 - sealings NBR - oil reservoir polycarbonate - input pressure max. 16 bar - temperature range up to max. +50 °C 48 - for compressed air or neutral gases - ATEX: II "GD IIA/IIB/IIC T4 0 °C ≤ Ta ≤ 60 °C 40 925830 Multifix Series 0 Series 1 Series 2 Type 925830 Thread Oil reservecm³ Oil meteringat 1000 l/min Response limitbar / l/min Series 0200  G 1/8"  35 approx. 10 - 20 drops/min 6 /   26 0 0202  G 1/4"  50 approx. 10 - 20 drops/min 6 /   26 1 0204  G 1/2" 125 approx.   1 -   2 drops/min 6 / 140 2 925830 Special oil for pneumatic oilers Type 925830 ContentsLitre Design 0210  1 for hall area/summer, temperature range from +5 °C to +50 °C Manometer Design: - housing made of plastic, black - 1st scale outside (black) => display in bar - measuring system, connection and pointer - 2nd scale inside (red) => display in PSI mechanism made of brass - viewing window made of plastic, crystal clear Note: - temperature range from ambient temperature -40 °C x 50 or 63 with centring pin for profile sealing to max. +60 °C, measuring medium max. +60 °C 925830 vertical Type 925830 ThreadClass 2.5 Scale division Display rangebarbar 0400   40 / G 1/8" 0.5 0 - 10 0402   40 / G 1/8" 0.5 0 - 16 0404   40 / G 1/8" 1.0 0 - 25 0406   50 / G 1/4" 0.5 0 - 10 0408   50 / G 1/4" 0.5 0 - 16 0410   50 / G 1/4" 1.0 0 - 25 0412   63 / G 1/4" 0.5 0 - 10 0414   63 / G 1/4" 0.5 0 - 16 vertical 0416   63 / G 1/4" 1.0 0 - 25 925830 horizontal Type 925830 ThreadClass 2.5 Scale division Display rangebarbar 0418   40 / G 1/8" 0.5 0 - 10 0420   40 / G 1/8" 0.5 0 - 16 0422   40 / G 1/8" 1.0 0 - 25 0424   50 / G 1/4" 0.5 0 - 10 0426   50 / G 1/4" 0.5 0 - 16 0428   50 / G 1/4" 1.0 0 - 25 0430   63 / G 1/4" 0.5 0 - 100432 63 / G 1/4"0.50 - 160434 63 / G 1/4"1.00 - 25horizontal92 Design: - for inner centring by centring spigot - attach the (disposable) seal ring to the manometer centring pin and screw in the manometer (max. 1 1/2 turns) 925830 Profile sealing ring, copper Type 925830 for threads 0440  G 1/8" 0442  G 1/4" 0444  G 1/2" www.precitool.de 92/1283
