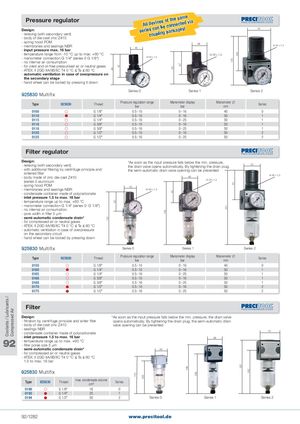

Coolants / Lubricants / Compressed Air 165 84 62 62 115 103 192 9467 67 156 129 251 135 99 100 187 152 Pressure regulatorDesign:- relieving (with secondary vent) seArliledsceocvuaipcnleinbsgeopcfaotcnhkneaesgcaetmesd!evia 70 - body of die-cast zinc Z410 - spring hood POM- membranes and sealings NBR 48 M 50 x 1,5 40 - input pressure max. 16 bar - temperature range from -10 °C up to max. +60 °C M 30 x 1,5 - manometer connection G 1/4" (series 0 G 1/8") M 30 x 1,5 - no internal air consumption - for oiled and oil-free pressurised air or neutral gases - ATEX: II 2GD IIA/IIB/IIC T4 0 °C ≤ Ta ≤ 60 °C - automatic ventilation in case of overpressure on the secondary stage - hand wheel can be locked by pressing it down Series 0 Series 1 Series 2 925830 Multifix Type 925830 Thread Pressure regulation range Manometer displaybarbar Manometer mm Series 0100  G 1/8" 0.5 - 10 0 - 16 40 0 0110  G 1/4" 0.5 - 10 0 - 16 50 1 0115  G 1/4" 0.5 - 16 0 - 25 50 1 0116  G 3/8" 0.5 - 10 0 - 16 50 1 0118  G 3/8" 0.5 - 16 0 - 25 50 1 0120  G 1/2" 0.5 - 10 0 - 16 50 2 0125  G 1/2" 0.5 - 16 0 - 25 50 2 Filter regulator Design: *As soon as the input pressure falls below the min. pressure, - relieving (with secondary vent) the drain valve opens automatically. By tightening the drain plug, 70 - with additional filtering by centrifuge principle and the semi-automatic drain valve opening can be prevented sintered filter- body made of zinc die-cast Z410 48 M 50 x 1,5 (series 5 aluminium M 30 x 1,5 - spring hood POM 40 - membranes and sealings NBR M 30 x 1,5 - condensate container made of polycarbonate - inlet pressure 1.5 to max. 16 bar - temperature range up to max. +60 °C - manometer connection G 1/4" (series 0: G 1/8") - no internal air consumption - pore width in filter 5 μm - semi-automatic condensate drain* - for compressed air or neutral gases - ATEX: II 2GD IIA/IIB/IIC T4 0 °C ≤ Ta ≤ 60 °C - automatic ventilation in case of overpressure on the secondary circuit - hand wheel can be locked by pressing down 925830 Multifix Series 0 Series 1 Series 2 Type 925830 Thread Pressure regulation range Manometer displaybarbar Manometer mm Series 0150  G 1/8" 0.5 - 10 0 - 16 40 0 0160  G 1/4" 0.5 - 10 0 - 16 50 1 0165  G 1/4" 0.5 - 16 0 - 25 50 1 0166  G 3/8" 0.5 - 10 0 - 16 50 1 0168  G 3/8" 0.5 - 16 0 - 25 50 1 0170  G 1/2" 0.5 - 10 0 - 16 50 2 0175  G 1/2" 0.5 - 16 0 - 25 50 2 Filter Design: *As soon as the input pressure falls below the min. pressure, the drain valve - filtration by centrifuge principle and sinter filter opens automatically. By tightening the drain plug, the semi-automatic drain - body of die-cast zinc Z410 valve opening can be prevented - sealings NBR - condensate container made of polycarbonate 70 - inlet pressure 1.5 to max. 16 bar 48 92 - temperature range up to max. +60 °C- filter pores size 5 µm - semi-automatic condensate drain* 40 - for compressed air or neutral gases - ATEX: II 2GD IIA/IIB/IIC T4 0 °C ≤ Ta ≤ 60 °C 1.5 to max. 16 bar 925830 Multifix Type 925830 Thread max. condensate volumecm³ Series 0190  G 1/8" 16 0 0192  G 1/4" 25 1 0194  G 1/2" 50 2 Series 0 Series 1 Series 2 92/1282 www.precitool.de
