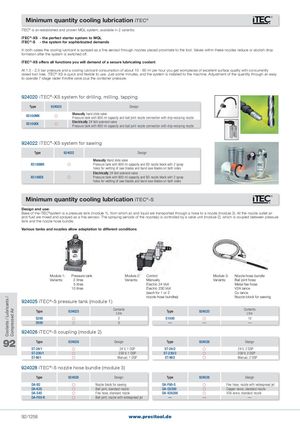

Minimum quantity cooling lubrication iTEC® iTEC® is an established and proven MQL system, available in 2 variants: iTEC®-XS - the perfect starter system to MQL iTEC®-S - the system for sophisticated demands In both cases the cooling lubricant is sprayed as a fine aerosol through nozzles placed proximate to the tool. Valves within these nozzles reduce or abolish drop formation after the system is switched off. iTEC®-XS offers all functions you will demand of a secure lubricating coolant At 1.5 - 2.5 bar pressure and a cooling lubricant consumption of about 10 - 60 ml per hour you get workpieces of excellent surface quality with concurrently raised tool lives. iTEC®-XS is quick and flexible to use. Just some minutes, and the system is installed to the machine. Adjustment of the quantity through an easy to operate 7-stage raster throttle valve plus the container pressure. 924020 iTEC®-XS system for drilling, milling, tapping Type 924020 Design XS100MK  Manually hand slide valvePressure tank with 800 ml capacity and ball joint nozzle connection with drip-reducing nozzle XS100EK  Electrically 24 Volt solenoid valvePressure tank with 800 ml capacity and ball joint nozzle connection with drip-reducing nozzle 924022 iTEC®-XS system for sawing Type 924022 Design Manually Hand slide valve XS100MB  Pressure tank with 800 ml capacity and B3 nozzle block with 2 spray holes for wetting of saw blades and band saw blades on both sides Electrically 24 Volt solenoid valve XS100EB  Pressure tank with 800 ml capacity and B3 nozzle block with 2 spray holes for wetting of saw blades and band saw blades on both sides Minimum quantity cooling lubrication iTEC®-S Design and use: Base of the iTEC®system is a pressure tank (module 1), from which air and liquid are transported through a hose to a nozzle (module 3). At the nozzle outlet air and fluid are mixed and sprayed as a fine aerosol. The spraying periods of the nozzle(s) is controlled by a valve unit (module 2), which is coupled between pressure tank and the nozzle hose bundle. Various tanks and nozzles allow adaptation to different conditions Module 1: Pressure tank Module 2: Control Module 3: Nozzle hose bundle Variants: 2 litres Variants: Manually Variants: Ball joint hose 5 litres Electric 24 Volt Metal flex hose 10 litres Electric 230 Volt V2A lance (each for 1 or 2 Cu lance nozzle hose bundles) Nozzle block for sawing 924025 iTEC®-S pressure tank (module 1) Type 924025 ContentsLitre Type 924025 ContentsLitre S200  2 S1000  10 S500  5 — — — 924026 iTEC®-S coupling (module 2) 92 Type 924026 Design Type 924026 Design ST-24/1  24 V, 1 DSP ST-24/2  24 V, 2 DSP ST-230/1  230 V, 1 DSP ST-230/2  230 V, 2 DSP ST-M/1  Manual, 1 DSP ST-M/2  Manual, 2 DSP 924028 iTEC®-S nozzle hose bundle (module 3) Type 924028 Design Type 924028 Design DA-B2  Nozzle block for sawing DA-F60-S  Flex hose, nozzle with widespread jet DA-K35  Ball joint, standard nozzle DA-CU200  Copper lance, standard nozzle DA-S45  Flex hose, standard nozzle DA-V2A200  V2A lance, standard nozzle DA-F60-K  Ball joint, nozzle with widespread jet — — — 92/1258 www.precitool.de Coolants / Lubricants / Compressed Air
