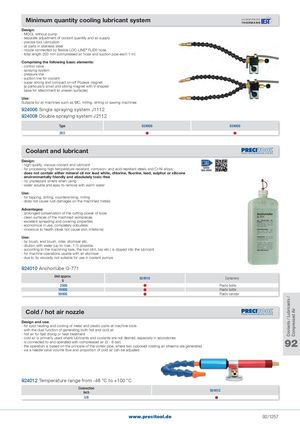

Minimum quantity cooling lubricant system Design: - MQCL without pump - separate adjustment of coolant quantity and air supply - precise tool lubrication - all parts in stainless steel - nozzle connected by flexible LOC-LINE® FLEXI hose - total length 203 mm (compressed air hose and suction pipe each 1 m) Comprising the following basic elements: - control valve - spraying system - pressure line - suction line for coolant - super strong and compact on-off Popeye magnet (a particularly small and strong magnet with V-shaped base for attachment to uneven surfaces) Use: Suitable for all machines such as MC, milling, drilling or sawing machines 924006 Single spraying system J1112 924008 Double spraying system J2112 Type 924006 924008 203   Coolant and lubricant Design: - high-quality, viscous coolant and lubricant - for processing high temperature-resistant, corrosion- and acid-resistant steels and Cr-Ni alloys - does not contain either mineral oil nor lead white, chlorine, fluorine, lead, sulphur or silicone - environmentally friendly and absolutely toxic-free - no unpleasant smells when using - water soluble and easy to remove with warm water Use: - for tapping, drilling, countersinking, milling - does not cause rust damages on the machined metals Advantages: - prolonged conservation of the cutting power of tools - clean surfaces of the machined workpieces - excellent spreading and covering properties - economical in use, completely odourless - innoxious to health (does not cause skin irritations) Use: - by brush, end brush, roller, atomiser etc. - dilution with water (up to max. 1:1) possible - according to the machining task, the tool (drill, tap etc.) is dipped into the lubricant - for machine operations usable with an atomiser - due to its viscosity not suitable for use in coolant pumps 924010 Anchorlube G-771 Unit approx.g 924010 Containers  250G  Plastic bottle 1000G  Plastic bottle 5000G  Plastic canister Cold / hot air nozzle Design and use: - for spot heating and cooling of metal and plastic parts at machine tools - with the dual function of generating both hot and cold air - hot air for fast drying or heat treatment - cold air is primarily used where lubricants and coolants are not desired, especially in laboratories - is connected to and operated with compressed air (3 - 8 bar)- the operation is based on the principle of the vortex pipe, where two opposed rotating air streams are generated92 - via a needle valve volume flow and proportion of cold air can be adjusted 924012 Temperature range from -48 °C to +100 °C ConnectionInch 924012 3/8  www.precitool.de 92/1257 Coolants / Lubricants / Compressed Air
