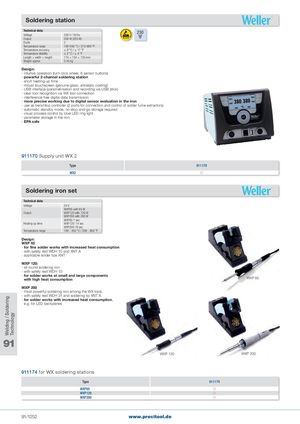

Soldering station Technical data: 230 Voltage 230 V / 50 Hz Output 200 W (255 W) Ducts 2 Temperature range 100-550 °C / 210-999 °F Temperature accuracy ± 9 °C / ± 17 °F Temperature stability ± 2 °C / ± 4 °F Length × width × height 174 × 154 × 135 mm Weight approx. 3.45 kg Design: - intuitive operation (turn-click wheel, 6 sensor buttons) - powerful 2-channel soldering station - short heating-up time - robust touchscreen (genuine glass, antistatic coating) - USB interface (parametrisation and recording via USB stick) - clear tool recognition via WX tool connection - interference-free digital data transmission - more precise working due to digital sensor evaluation in the iron - use as benchtop controller (2 ports for connection and control of solder fume extractors) - automatic standby mode, no stop-and-go storage required - visual process control by blue LED ring light - parameter storage in the iron - EPA safe 911170 Supply unit WX 2 Type 911170 WX2  Soldering iron set Technical data: Voltage 24 V WXP65 with 65 W Output WXP120 with 120 W WXP200 with 200 W WXP65 7 sec. Heating-up time WXP120: 14 sec. WXP200 19 sec. Temperature range 100 - 450 °C / 200 - 850 °F Design: WXP 65 - for fine solder works with increased heat consumption - with safety rest WDH 10 and XNT A - applicable solder tips XNT WXP 120: - all-round soldering iron - with safety rest WDH 10 - for solder works at small and large components with high heat consumption WXP 65 WXP 200 - most powerful soldering iron among the WX tools - with safety rest WDH 31 and soldering tip XNT A - for solder works with increased heat consumption, e.g. for LED backplanes 91 WXP 120 WXP 200 911174 for WX soldering stations Type 911174 WXP65  WXP120  WXP200  91/1252 www.precitool.de Welding / Soldering Technology
