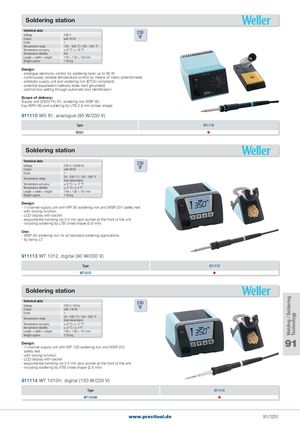

Общий каталог PRECITOOL - страница 1256

Soldering station Technical data: 230 Voltage 230 V Output with 95 W Ducts 1 Temperature range 150 - 450 °C / 302 - 842 °F Temperature accuracy ± 9 °C / ± 16 °F Temperature stability tbd Length × width × height 170 × 118 × 102 mm Weight approx. 1.89 kg Design: - analogue electronic control for soldering tools up to 80 W - continuously variable temperature control by means of rotary potentiometer - antistatic supply unit and soldering iron (ETUC compliant) - potential equalisation (delivery state hard grounded) - optimal tool setting through automatic tool identification Scope of delivery: Supply unit (230V) PU 81, soldering iron WSP 80, tray WPH-80 and soldering tip LTB 2.4 mm (chisel shape) 911110 WS 81, analogue (80 W/230 V) Type 911110 WS81  Soldering station Technical data: 230 Voltage 230 V / 50/60 Hz Output with 90 W Ducts 1 Temperature range 50 - 550 °C / 150 - 950 °F(tool-dependant) Temperature accuracy ± 9 °C / ± 17 °F Temperature stability ± 2 °C / ± 4 °F Length × width × height 149 × 138 × 101 mm Weight approx. 1.90 kg Design: - 1-channel supply unit with WP 80 soldering iron and WSR 201 safety rest - with locking function - LCD display with backlit - equipotential bonding via 3.5 mm jack socket at the front of the unit - including soldering tip LTB chisel shape (0.8 mm) Use: - WSP 80 soldering iron for all standard soldering applications - tip family LT 911113 WT 1012, digital (90 W/230 V) Type 911113 WT1012  Soldering station Technical data: 230 Voltage 230 V / 50 Hz Output with 150 W Ducts 1 Temperature range 50 - 550 °C / 150 - 950 °F(tool-dependant) Temperature accuracy ± 9 °C / ± 17 °F Temperature stability ± 2 °C / ± 4 °F Length × width × height 149 × 138 × 101 mm Weight approx. 3.00 kg Design:- 1-channel supply unit with WP 120 soldering iron and WSR 201 91 safety rest - with locking function - LCD display with backlit - equipotential bonding via 3.5 mm jack socket at the front of the unit - including soldering tip XTB chisel shape (2.4 mm) 911114 WT 1010H, digital (150 W/230 V) Type 911114 WT1010H  www.precitool.de 91/1251 Welding / Soldering Technology
