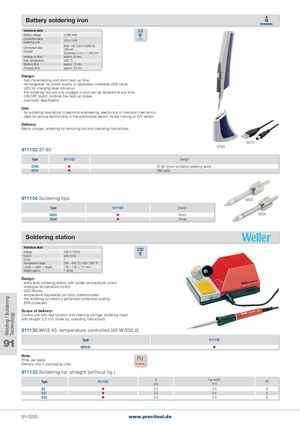

Общий каталог PRECITOOL - страница 1255

Battery soldering iron Technical data: 3,6 Battery voltage 2,000 mAh Connected valueSoldering unit 3.6 V / 6 W Li-Ion Connected valueCharger Main 100-230 V, 50/60 Hz,190 mASecondary 4.2 V = 1,000 mA Heating-up time approx. 25 sec Max. temperature 450 °C Working time approx. 75 min Charging time approx. 3.5 hrs Design: - fast implementing and short heat-up time - rechargeable via power supply or separately orderable USB cable - LED for charging level indication - the soldering tips are only plugged in and can be replaced at any time - ON/OFF switch controls the heat-up phase - automatic deactivation Use: - for soldering operations in electrical engineering, electronics or precision mechanics - ideal for service technicians, in the automotive sector, model making or DIY sector Delivery: Mains charger, soldering tip removing aid and operating instructions 0010 ST80 911102 ST-80 Type 911102 Design ST80  ST-80 lithium-ion battery soldering device 0010  USB cable 911104 Soldering tips 0002 Type 911104 Design 0002  Pencil 0004 0004  Chisel Soldering station Technical data: 230 Voltage 230 V / 50 Hz Output with 40 W Ducts 1 Temperature range 200 - 450 °C / 400 - 850 °F Length × width × height 158 × 105 × 111 mm Weight approx. 1.46 kg Design: - entry-level soldering station with solder temperature control - analogue temperature control - LED display - temperature adjustable via rotary potentiometer - the soldering tip wears a galvanised protective coating - EPA protected Scope of delivery: Control unit with rest function and cleaning sponge, soldering insert with straight 3.5 mm nickel tip, operating instructions 911130 WHS 40, temperature controlled (40 W/230 V) 91 TypeWHS40 911130  Note:Price per piece PU Delivery only in packaging units 6 pieces 911132 Soldering tip, straight (without fig.) Type 911132 xmm Top width mm PU S3  3.5 3.5 6 S31  3.5 0.4 6 S32  3.5 2.0 6 91/1250 www.precitool.de Welding / Soldering Technology
