Общий каталог PRECITOOL - страница 1258

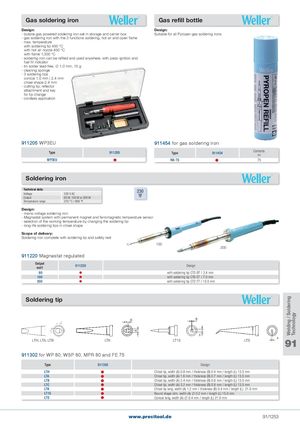

Gas soldering iron Gas refill bottle Design: Design: - butane gas powered soldering iron set in storage and carrier box Suitable for all Pyropen gas soldering irons - gas soldering iron with the 3 functions soldering, hot air and open flame - max. temperature with soldering tip 450 °C with hot air nozzle 450 °C with flame 1,300 °C - soldering iron can be refilled and used anywhere, with piezo ignition and fuel fill indicator - tin solder lead-free, x 1.0 mm, 15 g - cleaning sponge - 3soldering tips conical 1.0 mm | 2.4 mm chisel shape 2.4 mm - cutting tip, reflector attachment and key for tip change - cordless application 911205 WP3EU 911454 for gas soldering iron Type 911205 Type 911454 Contentsml WP3EU  RB-TS  75 Soldering iron Technical data: 230 Voltage 230 V AC Output 60 W, 100 W or 200 W Temperature range 370 °C / 698 °F Design: - mains voltage soldering iron - Magnastat system with permanent magnet and ferromagnetic temperature sensor - selection of the working temperature by changing the soldering tip - long-life soldering tips in chisel shape Scope of delivery: Soldering iron complete with soldering tip and safety rest 100 200 911220 Magnastat regulated Outputwatt 911220 Design  60  with soldering tip CT5 B7 / 2,4 mm 100  with soldering tip CT6 E7 / 7.0 mm 200  with soldering tip CT2 F7 / 10.0 mm Soldering tip LTH, LTA, LTB LTK LT1S LTS 91 911302 for WP 80, WSP 80, MPR 80 and FE 75 Type 911302 Design LTH  Chisel tip, width (A) 0.8 mm / thickness (B) 0.4 mm / length (L) 13.5 mm LTA  Chisel tip, width (A) 1.6 mm / thickness (B) 0.7 mm / length (L) 13.5 mm LTB  Chisel tip, width (A) 2.4 mm / thickness (B) 0.8 mm / length (L) 13.5 mm LTC  Chisel tip, width (A) 3.2 mm / thickness (B) 0.8 mm / length (L) 13.5 mm LTK  Chisel tip long, width (A) 1.2 mm / thickness (B) 0.4 mm / length (L) 21.0 mm LT1S  Round shape slim, width (A) x 0.2 mm / length (L) 15.0 mm LTS  Conical long, width (A) x 0.4 mm / length (L) 21.0 mm www.precitool.de 91/1253 Welding / Soldering Technology
