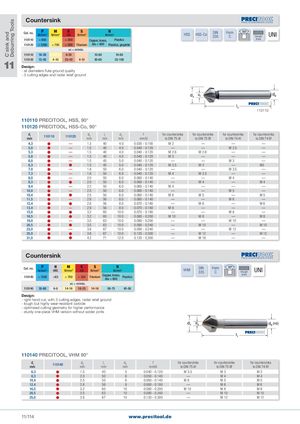

P M K S N DIN Form 90° UNI
Cat. no. HSS HSS-Co
| N/mm2 | N/mm2 | HB | N/mm2 | N/mm2 | 335 | C | |
| Straight |
| 110110 | < 850 | < 250 | Copper, brass, | Plastics | shank | |||||
| 110120 | < 1200 | < 750 | < 200 | Titanium | Alu < 600 | Plastics, graphite | ||||
| vc = m/min. | ||||||||||
| 110110 | 18-28 | 8-20 | 10-80 | 10-80 | ||||||
| 11 | 110120 | 12-45 | 4-10 | 20-40 | 4-10 | 30-60 | 35-100 |
Design: - all diameters flute ground quality - 3 cutting edges and radial relief ground
110110
110110 PRECITOOL, HSS, 90°
110120 PRECITOOL, HSS-Co, 90°
| d1 mm | 110110 | 110120 | d3 mm | l1 mm | d2 mm | f mm/U | for countersinks to DIN 75 Af | for countersinks to DIN 75 Bf | for countersinks to DIN 74 Af | for countersinks to DIN 74 Bf |
| 4,3 | | — | 1�3 | 40 | 4�0 | 0�030 - 0�100 | M 2 | — | — | — |
| 5,0 | | — | 1�5 | 40 | 4�0 | 0�040 - 0�120 | — | — | M 2�5 | — |
| 5,3 | | — | 1�5 | 40 | 4�0 | 0�040 - 0�120 | M 2�6 | M 2�6 | — | — |
| 5,8 | | — | 1�5 | 40 | 4�0 | 0�040 - 0�120 | M 3 | — | — | — |
| 6,0 | | — | 1�5 | 45 | 5�0 | 0�040 - 0�120 | — | — | M 3 | — |
| 6,3 | | | 1�5 | 45 | 5�0 | 0�040 - 0�120 | M 3�5 | M 3 | — | M3 |
| 7,0 | | — | 1�8 | 50 | 6�0 | 0�040 - 0�120 | — | — | M 3�5 | — |
| 7,3 | | — | 1�8 | 50 | 6�0 | 0�040 - 0�120 | M 4 | M 3�5 | — | — |
| 8,0 | | — | 2�0 | 50 | 6�0 | 0�060 - 0�140 | — | — | M 4 | — |
| 8,3 | | | 2�0 | 50 | 6�0 | 0�060 - 0�140 | — | M 4 | — | M 4 |
| 9,4 | | — | 2�2 | 50 | 6�0 | 0�060 - 0�140 | M 4 | — | — | — |
| 10,0 | | — | 2�5 | 50 | 6�0 | 0�060 - 0�140 | — | — | M 5 | — |
| 10,4 | | | 2�5 | 50 | 6�0 | 0�060 - 0�140 | M 6 | M 5 | — | M 5 |
| 11,5 | | — | 2�8 | 56 | 8�0 | 0�060 - 0�140 | — | — | M 6 | — |
| 12,4 | | | 2�8 | 56 | 8�0 | 0�070 - 0�180 | — | M 6 | — | M 6 |
| 13,4 | | — | 2�9 | 56 | 8�0 | 0�070 - 0�180 | M 8 | — | — | — |
| 15,0 | | | 3�2 | 60 | 10�0 | 0�070 - 0�180 | — | — | M 8 | — |
| 16,5 | | | 3�2 | 60 | 10�0 | 0�080 - 0�200 | M 10 | M 8 | — | M 8 |
| 19,0 | | — | 3�5 | 63 | 10�0 | 0�080 - 0�200 | — | — | M 10 | — |
| 20,5 | | | 3�5 | 63 | 10�0 | 0�090 - 0�240 | — | M 10 | — | M 10 |
| 23,0 | | — | 3�8 | 67 | 10�0 | 0�090 - 0�240 | — | — | M 12 | — |
| 25,0 | | | 3�8 | 67 | 10�0 | 0�120 - 0�300 | — | M 12 | — | M 12 |
| 31,0 | | | 4�2 | 71 | 12�0 | 0�120 - 0�300 | — | M 16 | — | — |
Countersink
| P | H | M | K | S | N | ||||
| Cat. no. | VHM | ||||||||
| N/mm2 | HRC | N/mm2 | HB | N/mm2 | N/mm2 | ||||
| 110140 | < 1200 | <63 | < 750 | < 250 | Titanium Copper, brass, | Plastics | |||
| Alu < 600 | |||||||||
| vc = m/min. | |||||||||
| 110140 | 18-60 | 6-8 | 14-16 | 18-25 | 14-16 | 50-75 | 45-50 |
Design: - right hand cut, with 3 cutting edges, radial relief ground - tough but highly wear-resistant carbide - optimised cutting geometry for higher performance
- sturdy one-piece VHM version without solder joints
DIN 335
Form C
90°
UNI
Straight shank
(h6)
110140 PRECITOOL, VHM 90°
| d1 mm | 110140 | d3 mm | l1 mm | d2 mm | f mm/U | for countersinks to DIN 75 Af | for countersinks to DIN 75 Bf | for countersinks to DIN 74 Bf |
| 6,3 | | 1�5 | 45 | 5 | 0�040 - 0�120 | M 3�5 | M 3 | M 3 |
| 8,3 | | 2�0 | 50 | 6 | 0�050 - 0�140 | — | M 4 | M 4 |
| 10,4 | | 2�5 | 50 | 6 | 0�060 - 0�140 | M 6 | M 5 | M 5 |
| 12,4 | | 2�8 | 56 | 8 | 0�060 - 0�180 | — | M 6 | M 6 |
| 16,5 | | 3�2 | 60 | 10 | 0�080 - 0�200 | M 10 | M 8 | M 8 |
| 20,5 | | 3�5 | 63 | 10 | 0�090 - 0�240 | — | M 10 | M 10 |
| 25,0 | | 3�8 | 67 | 10 | 0�120 - 0�300 | — | M 12 | M 12 |
