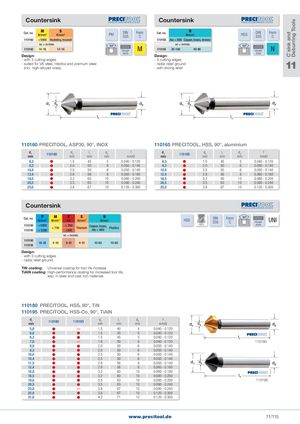

Countersink Countersink

M S DIN Form N DIN Form

Cat. no. PM Cat. no. HSS

N/mm2 N/mm2 335 C N/mm2 335 C

110160	<1000 Hastelloy, Inconel	110165 Alu < 600 Copper, brass, bronze
	vc = m/min.		vc = m/min.

90° M 90° N

110160	14-16	14-16		110165	20-100	40-90
			Straight				Straight
Design:			shank	Design:			shank
- with 3 cutting edges				- 3 cutting edges				11

- suited for VA steel, Hardox and premium steel - radial relief ground (incl. high-alloyed ones). - with strong relief

110160 PRECITOOL, ASP30, 90°, INOX 110165 PRECITOOL, HSS, 90°, aluminium

d		d	l	d		f d		d	l	d	f
1	110160	3	1	2		1	110165	3	1	2
mm		mm	mm	mm		mm/U mm		mm	mm	mm	mm/U
6,3		1�5	45	5	0�040 - 0�120	6,3		1�5	45	5	0�040 - 0�120
8,3		2�0	50	6	0�050 - 0�140	8,3		2�0	50	6	0�050 - 0�140
10,4		2�5	50	6	0�050 - 0�140	10,4		2�5	50	6	0�050 - 0�140
12,4		2�8	56	8	0�060 - 0�180	12,4		2�8	56	8	0�060 - 0�180
16,5		3�2	60	10	0�080 - 0�200	16,5		3�2	60	10	0�080 - 0�200
20,5		3�5	63	10	0�090 - 0�240	20,5		3�5	63	10	0�090 - 0�240
25,0		3�8	67	10	0�120 - 0�300	25,0		3�8	67	10	0�120 - 0�300
Countersink

	P	M	K	S	N			DIN	Form	90°		UNI
Cat. no.						HSS
	N/mm2	N/mm2	HB	N/mm2	N/mm2			335	C
											Straight
110180	<1000		< 250				coated				shank

< 750 Titanium Copper, brass, Plastics

110195	< 1200		<300		Alu < 600
			vc = m/min.
110180
	18-28	4-10	8-20	4-10	10-80	10-80

110195 Design: - with 3 cutting edges - radial relief ground

TiN coating: Universal coating for tool life increase

TiAIN coating: High-performance coating for increased tool life, esp. in steel and cast iron materials

110180 PRECITOOL, HSS, 90°, TiN

110195 PRECITOOL, HSS-Co, 90°, TiAIN

d1	110180	110195	d3	l1	d2	f
mm			mm	mm	mm	mm/U
5,0		—	1�5	40	4	0�040 - 0�120
6,0			1�5	45	5	0�040 - 0�120
6,3			1�5	45	5	0�040 - 0�120
7,0		—	1�8	50	6	0�040 - 0�120	110180
8,0			2�0	50	6	0�050 - 0�140
8,3			2�0	50	6	0�050 - 0�140
10,0			2�5	50	6	0�050 - 0�140
10,4			2�5	50	6	0�050 - 0�140
11,5			2�8	56	8	0�050 - 0�140
12,4			2�8	56	8	0�060 - 0�180
15,0			3�2	60	10	0�060 - 0�180
16,5			3�2	60	10	0�080 - 0�200
19,0			3�5	63	10	0�080 - 0�200	110195
20,5			3�5	63	10	0�090 - 0�240
23,0		—	3�8	67	10	0�090 - 0�240
25,0			3�8	67	10	0�120 - 0�300
31,0			4�2	71	12	0�120 - 0�300
