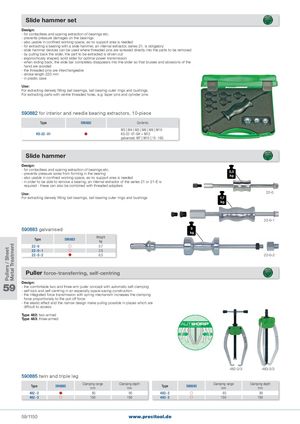

Slide hammer set Design: - for contactless and sparing extraction of bearings etc. - prevents pressure damages on the bearings - also usable in confined working space, as no support area is needed - for extracting a bearing with a slide hammer, an internal extractor, series 21, is obligatory - slide hammer devices can be used where threaded pins are screwed directly into the parts to be removed - by pulling back the slider, the part to be extracted is driven out - ergonomically shaped, solid slider for optimal power transmission - when sliding back, the slide bar completely disappears into the slider so that bruises and abrasions of the hand are avoided - the threaded pins are interchangeable - stroke length 220 mm - in plastic case Use: For extracting densely fitting ball bearings, ball bearing outer rings and bushings. For extracting parts with centre threaded holes, e.g. taper pins and cylinder pins 590882 for interior and needle bearing extractors, 10-piece Type 590882 Contents M3 | M4 | M5 | M6 | M8 | M10 KS-22 - 01  KS-22 - 01-GH = M12 galvanised: M7 | M10 | 15 - 16G Slide hammer Design: - for contactless and sparing extraction of bearings etc.- prevents pressure sores from forming in the bearing- also usable in confined working space, as no support area is needed0,5kg - in order to be able to remove a bearing, an internal extractor of the series 21 or 21-E is required - these can also be combined with threaded adapters Use: 22-0 For extracting densely fitting ball bearings, ball bearing outer rings and bushings 1,7 kg 22-0-1 590883 galvanised 5 kg Type 590883 Weightkg 22 - 0  0.7 22 - 0 - 1  2.5 22 - 0 - 2  6.5 22-0-2 Puller force-transferring, self-centring Design: 59 - the comfortable two and three arm puller concept with automatic self-clamping- self-lock and self-centring in an especially space-saving construction - the integrated force transmission with spring mechanism increases the clamping force proportionally to the pull-off force - the elastic effect and the narrow design make pulling possible in places which are difficult to access Type 482: two-armed Type 483: three-armed 482-2/3 483-2/3 590885 twin and triple leg Type 590885 Clamping rangemm Clamping depthmm Type 590885 Clamping rangemm Clamping depthmm 482 - 2  85 90 483 - 2  85 90 482 - 3  150 150 483 - 3  150 150 59/1150 www.precitool.de Pullers / Sheet Metal Treatment
