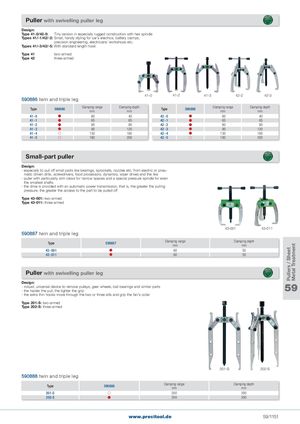

Puller with swivelling puller leg Design: Type 41-0/42-0: Tiny version in especially rugged construction with hex spindle Types 41/-1/42/-2: Small, handy styling for car´s electrics, battery clamps, precision engineering, electricians´ workshops etc. Types 41/-3/42/-5: With standard length hook Type 41 two-armed Type 42 three-armed 41-0 41-2 41-3 42-2 42-3 590886 twin and triple leg Type 590886 Clamping range Clamping depthmmmm Type 590886 Clamping range Clamping depthmmmm 41 - 0  60 40 42 - 0  60 40 41 - 1  65 65 42 - 1  65 65 41 - 2  80 80 42 - 2  80 80 41 - 3  90 120 42 - 3  90 120 41 - 4  130 160 42 - 4  130 160 41 - 5  180 200 42 - 5  180 200 Small-part puller Design: - especially to pull off small parts like bearings, sprockets, nozzles etc. from electric or pneu- matic driven drills, screwdrivers, food processors, dynamos, wiper drives and the like - puller with particularly slim claws for narrow spaces and a special pressure spindle for even the smallest shafts - the drive is provided with an automatic power transmission, that is, the greater the pulling pressure, the greater the access to the part to be pulled off Type 43-001: two-armed Type 43-011: three-armed 43-001 43-011 590887 twin and triple leg Type 590887 Clamping rangemm Clamping depthmm 43 - 001  60 50 43 - 011  60 50 Puller with swivelling puller leg Design: - robust, universal device to remove pulleys, gear wheels, ball bearings and similar parts- the harder the pull, the tighter the grip 59 - the extra thin hooks move through the two or three slits and grip the fan's collar Type 201-S: two-armed Type 202-S: three-armed 201-S 202-S 590888 twin and triple leg Type 590888 Clamping rangemm Clamping depthmm 201-S  200 200 202-S  200 200 www.precitool.de 59/1151 Pullers / Sheet Metal Treatment
