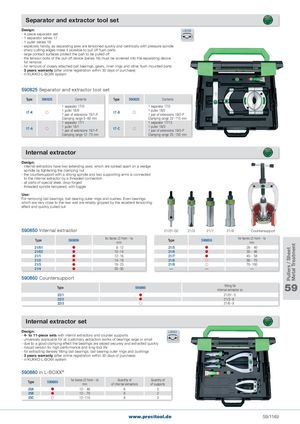

Separator and extractor tool set Design: L-BOXX - 4-piece separator set - 1 separator series 17 - 1 puller series 18 - especially handy, as separating jaws are tensioned quickly and centrically with pressure spindle - sharp cutting edges make it possible to pull off flush parts - large contact surfaces protect the part to be pulled off - the tension bolts of the pull-off device (series 18) must be screwed into the separating device for removal - for removal of closely attached ball bearings, gears, inner rings and other flush mounted parts - 3years warranty (after online registration within 30 days of purchase) - in KUKKO-L-BOXX system 590825 Separator and extractor tool set Type 590825 Contents Type 590825 Contents 1 separator 17/0 1 separator 17/2 17-K  1 puller 18/01 pair of extensions 19/1-P17-B  1 puller 18/21 pair of extensions 19/2-P Clamping range 5 - 60 mm Clamping range 22 - 115 mm 1 separator 17/1 1 separator 17/13 17-A  1 puller 18/11 pair of extensions 19/1-P17-C  1 puller 18/31 pair of extensions 19/3-P Clamping range 12 - 75 mm Clamping range 25 - 155 mm Internal extractor Design: - internal extractors have two extending jaws, which are spread apart on a wedge spindle by tightening the clamping nut - the countersupport with a strong spindle and two supporting arms is connected to the internal extractor by a threaded connection - all parts of special steel, drop-forged - threaded spindle tempered, with toggle Use: For removing ball bearings, ball bearing outer rings and bushes. Even bearings which are very close to the rear wall are reliably gripped by the excellent tensioning effect and quickly pulled out 590850 Internal extractor 21/01-02 21/3 21/7 21/9 Countersupport Type 590850 for bores x from - tomm Type 590850 for bores x from - tomm 21/01  8 - 12  21/5  28 -   40  21/02  10 - 14  21/6  35 -   46  21/1  12 - 16  21/7  45 -   58  21/2  14 - 19  21/8  56 -   70  21/3  18 - 23  21/9  70 - 100  21/4  20 - 30  — — — 590860 Countersupport Type 590860 fitting forinternal extractor sz. 59 22/1  21/01 - 5 22/2  21/3 - 8 22/3  21/6 - 9 Internal extractor set Design: L-BOXX - 4- to 11-piece sets with interior extractors and counter supports - universally applicable for all customary extraction works of bearings large or small - due to a good clamping effect the bearings are seized securely and extracted quickly - robust version for high performance and long tool life - for extracting densely fitting ball bearings, ball bearing outer rings and bushings - 3years warranty (after online registration within 30 days of purchase) - in KUKKO-L-BOXX system 590880 in L-BOXX® Type 590880 for bores x from - tomm Quantity ofof internal extractorsQuantity ofof supports 25A  12 -   46  6 2 25B  12 -   70  8 2 25C  12 - 110  8 3 www.precitool.de 59/1149 Pullers / Sheet Metal Treatment
