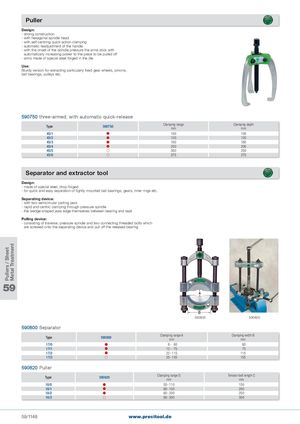

Общий каталог PRECITOOL - страница 1153

Puller Design: - strong construction - with hexagonal spindle head - with self-centring quick-action clamping - automatic readjustment of the handle - with the onset of the spindle pressure the arms stick with automatically increasing power to the piece to be pulled off - arms made of special steel forged in the die Use: Sturdy version for extracting particularly fixed gear wheels, pinions, ball bearings, pulleys etc. 590750 three-armed, with automatic quick-release Type 590750 Clamping rangemm Clamping depthmm 45/1  100 100 45/2  120 120 45/3  160 160 45/4  250 200 45/5  300 250 45/6  375 275 Separator and extractor tool Design: - made of special steel, drop-forged - for quick and easy separation of tightly mounted ball bearings, gears, inner rings etc. Separating device: - with two semicircular parting jaws - rapid and centric clamping through pressure spindle - the wedge-shaped jaws edge themselves between bearing and seat Pulling device: - consisting of traverse, pressure spindle and two connecting threaded bolts which are screwed onto the separating device and pull off the released bearing 59 590800 590820 590800 Separator Type 590800 Clamping range Amm Clamping width Bmm 17/0  8 -   60  60 17/1  12 -   75  75 17/2  22 - 115  115 17/3  25 - 155  155 590820 Puller Type 590820 Clamping range Dmm Tension bolt length Cmm 18/0  50 - 110  150 18/1  60 - 150  200 18/2  60 - 200  250 18/3  80 - 300  300 59/1148 www.precitool.de Pullers / Sheet Metal Treatment
