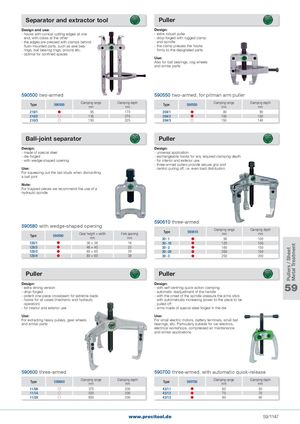

Separator and extractor tool Puller Design and use: Design: - hooks with conical cutting edges at one - extra robust puller end, with claws at the other - drop-forged with rugged clamp - the edges are pressed with clamps behind and spindle flush-mounted parts, such as axle bea- - the clamp presses the hooks rings, ball bearing rings, pinions etc. firmly to the designated parts - optimal for confined spaces Use: Also for ball bearings, cog wheels and similar parts 590500 two-armed 590550 two-armed, for pitman arm puller Type 590500 Clamping rangemm Clamping depthmm Type 590550 Clamping rangemm Clamping depthmm 210/1  95 170 204/1  80 90 210/2  135 270 204/2  100 100 210/3  150 325 204/3  150 140 Ball-joint separator Puller Design: Design: - made of special steel - universal application - die-forged - exchangeable hooks for any required clamping depth - with wedge-shaped opening - for interior and exterior use - three-armed pullers provide secure grip and Use: centric pulling off, i.e. even load distribution For squeezing out the ball studs when dismantling a ball joint Note: For trapped pieces we recommend the use of a hydraulic spindle 590610 three-armed 590580 with wedge-shaped opening Type 590580 Clear height × widthmm Fork openingmm Type 590610 Clamping rangemm Clamping depthmm30 - 190100 128/1  38 × 36 18 30 - 10  120 100 128/2  48 × 45 23 30 - 2  160 150 128/3  60 × 60 29 30 - 20  200 150 128/4  80 × 60 39 30 - 3  250 200 Puller Puller Design:- extra strong version- drop-forged Design:- with self-centring quick-action clamping- automatic readjustment of the handle59 - potent one-piece crossbeam for extreme loads - with the onset of the spindle pressure the arms stick - hooks for all cases (mechanic and hydraulic with automatically increasing power to the piece to be operation) pulled off - for interior and exterior use - arms made of special steel forged in the die Use: Use: For extracting heavy pulleys, gear wheels For small electric motors, battery terminals, small ball and similar parts bearings, etc. Particularly suitable for car electrics, electrical workshops, compressed air maintenance and similar applications 590600 three-armed 590700 three-armed, with automatic quick-release Type 590600 Clamping rangemm Clamping depthmm Type 590700 Clamping rangemm Clamping depthmm 11/0A  375 200 43/11  60 50 11/1A  520 200 43/12  70 70 11/2A  650 200 43/13  80 80 www.precitool.de 59/1147 Pullers / Sheet Metal Treatment
