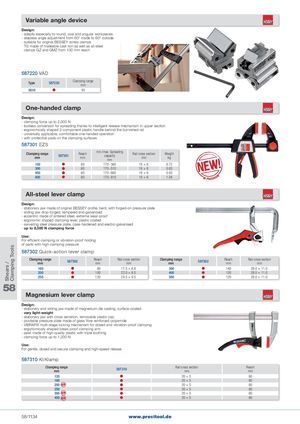

Variable angle device Design: - adapts especially to round, oval and angular workpieces - stepless angle adjustment from 60° inside to 60° outside - suitable for original BESSEY screw clamps TG made of malleable cast iron as well as all-steel clamps GZ and GMZ from 100 mm reach 587220 VAD Type 587220 Clamping rangemm 0010  45 One-handed clamp Design: - clamping force up to 2,000 N - toolless conversion for spreading thanks to intelligent release mechanism in upper section - ergonomically shaped 2-component plastic handle behind the burnished rail - universally applicable, comfortable one-handed operation - with protective pads on the clamping surfaces 587301 EZS Clamping rangemm 587301 Reachmm min./max. SpreadingcapacitymmRail cross sectionmmWeightkg 150  80 170 - 360  19 × 6 0.72 300  80 170 - 510  19 × 6 0.83 450  80 170 - 660  19 × 6 0.93 600  80 170 - 810  19 × 6 1.04 All-steel lever clamp Design: - stationary jaw made of original BESSEY profile, bent, with forged-on pressure plate - sliding jaw drop-forged, tempered and galvanised - eccentric made of sintered steel, extreme wear-proof - ergonomic shaped clamping lever, plastic coated - swivelling steel pressure plate, case-hardened and electro-galvanised - up to 8,500 N clamping force Use: For efficient clamping or vibration-proof holding of parts with high clamping pressure 587302 Quick-action lever clamp Clamping rangemm 587302 Reachmm Rail cross sectionmm Clamping rangemm 587302 Reachmm Rail cross sectionmm 160  80 17.5 × 6.8 300  140 28.0 × 11.0 200  100 22.0 × 8.5 400  120 28.0 × 11.0 250  120 24.5 × 9.5 500  120 28.0 × 11.0 58 Magnesium lever clamp Design: - stationary and sliding jaw made of magnesium die casting, surface-coated - very light-weight - stationary jaw with cross serration, removable plastic cap - pivotable pressure plate made of glass fibre reinforced polyamide - VIBRAFIX multi-stage locking mechanism for dosed and vibration-proof clamping - ergonomically shaped break-proof clamping arm - pawl made of high-quality plastic with triple toothing - clamping force up to 1,200 N Use: For gentle, dosed and secure clamping and high-speed release 587310 KliKlamp Clamping rangemm 587310 Rail cross sectionmm Reachmm 120  20 × 5 80 160  20 × 5 80 200  20 × 5 80 250  20 × 5 80 300  20 × 5 80 400  20 × 5 80 58/1134 www.precitool.de Shears / Clamping Tools
