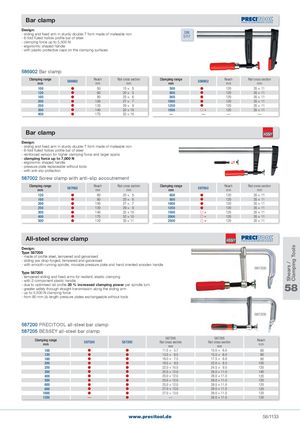

Общий каталог PRECITOOL - страница 1138

Bar clamp Design:- sliding and fixed arm in sturdy double-T form made of malleable iron- 6-fold fluted hollow profile bar of steelDIN5117 - clamping force up to 5,500 N - ergonomic shaped handle - with plastic protective caps on the clamping surfaces 586902 Bar clamp Clamping rangemm 586902 Reachmm Rail cross sectionmm Clamping rangemm 586902 Reachmm Rail cross sectionmm 100  50 15 ×   5 500  120 35 × 11 120  60 20 ×   5 600  120 35 × 11 160  80 25 ×   6 800  120 35 × 11 200  100 27 ×   7 1000  120 35 × 11 250  120 29 ×   9 1250  120 35 × 11 300  140 32 × 10 1500 + 120 35 × 11 400  175 32 × 10 — — — — Bar clamp Design: - sliding and fixed arm in sturdy double-T form made of malleable iron - 6-fold fluted hollow profile bar of steel - reinforced version for higher clamping force and larger spans - clamping force up to 7,000 N - ergonomic shaped handle - pressure plate replaceable without tools - with anti-slip protection 587002 Screw clamp with anti-slip accoutrement Clamping rangemm 587002 Reachmm Rail cross sectionmm Clamping rangemm 587002 Reachmm Rail cross sectionmm 120  60 20 ×   5 600  120 35 × 11 160  80 25 ×   6 800  120 35 × 11 200  100 27 ×   7 1000  120 35 × 11 250  120 29 ×   9 1250  120 35 × 11 300  140 32 × 10 1500 + 120 35 × 11 400  175 32 × 10 2000 + 120 35 × 11 500  120 35 × 11 2500 + 120 35 × 11 All-steel screw clamp Design: Type 587200 - made of profile steel, tempered and galvanised - sliding jaw drop-forged, tempered and galvanised - with smooth-running spindle, movable pressure plate and hand oriented wooden handle 587200 Type 587205 - tempered sliding and fixed arms for resilient, elastic clamping - with 2-component plastic handle - due to optimised rail profile 20 % increased clamping power per spindle turn- greater safety through straight transmission along the sliding arm 58 - up to 5.500 N clamping force - from 80 mm jib length pressure plates exchangeable without tools 587205 587200 PRECITOOL all-steel bar clamp 587205 BESSEY all-steel bar clamp Clamping rangemm 587200 587205 587200Rail cross sectionmm 587205Rail cross sectionmm Reachmm 100   11.5 ×   5.7 15.0 ×   6.0 60 120   13.5 ×   6.5 15.0 ×   6.0 60 160   16.0 ×   7.5 17.5 ×   6.8 80 200   19.5 ×   9.5 22.0 ×   8.5 100 250   22.0 × 10.5 24.5 ×   9.5 120 300   25.0 × 12.0 28.0 × 11.0 140 400   25.0 × 12.0 28.0 × 11.0 120 500   25.0 × 12.0 28.0 × 11.0 120 600   25.0 × 12.0 28.0 × 11.0 120 800   27.0 × 13.0 28.0 × 11.0 120 1000   27.0 × 13.0 28.0 × 11.0 120 1250 —  — 28.0 × 11.0 120 www.precitool.de 58/1133 Shears / Clamping Tools
