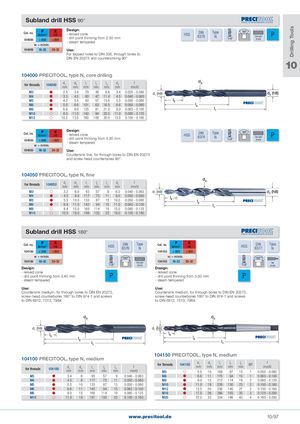

Общий каталог PRECITOOL - страница 102

Subland drill HSS 90°

Cat. no. DIN Type 90° P

N/mm HB - relived cone HSS

2		8378	N
	- drill point thinning from 2.50 mm			Straight

104000	< 850	<300	shank 118°
			- steam tempered
	vc = m/min.
104000	16-32	20-32	Use:
			For tapped holes to DIN 336, through bores to
			10 DIN EN 20273 and countersinking 90°
104000 PRECITOOL, type N, core drilling

for threads	104000	d	d	l	l	l	d		f
		mm1	mm3	mm1	mm2	mm3	mm2		mm/U
M3		2�5	3�4	70	39	8�8	3�4	0�025 - 0�040		d (h9)
M4		3�3	4�5	80	47	11�4	4�5	0�040 - 0�063		1
M5		4�2	5�5	93	57	13�6	5�5	0�050 - 0�080
M6		5�0	6�6	101	63	16�5	6�6	0�050 - 0�080
M8		6�8	9�0	125	81	21�0	9�0	0�063 - 0�100
M10		8�5	11�0	142	94	25�5	11�0	0�080 - 0�125
M12		10�2	13�5	160	108	30�0	13�5	0�100 - 0�160

P K Design:

Cat. no. DIN Type 90° P

N/mm - relived cone HSS

2	HB		8374	N
		- drill point thinning from 3.20 mm			Straight

104050		< 850	<300		118°	shank
				- steam tempered
	vc = m/min.
104050		16-32	20-32	Use:

Countersink fine, for through bores to DIN EN 20273 and screw-head counterbores 90°.

104050 PRECITOOL, type N, fine

		d	d	l	l	l	d		f
for threads	104050	1	3	1	2	3	2
		mm	mm	mm	mm	mm	mm		mm/U
M3		3�2	6�0	93	57	9	6�0	0�040 - 0�063		d (h9)
M4		4�3	8�0	117	75	11	8�0	0�050 - 0�080		1
M5		5�3	10�0	133	87	13	10�0	0�050 - 0�080
M6		6�4	11�5	142	94	15	11�5	0�063 - 0�100
M8		8�4	15�0	169	114	19	15�0	0�080 - 0�125
M10		10�5	19�0	198	135	23	19�0	0�100 - 0�160

Subland drill HSS 180°

P K DIN Type P K DIN Type

Cat. no. HSS Cat. no. HSS

	N/mm2	HB	8376 N		N/mm2	HB	8377 N
104100	< 850	<300		104150	< 850	<300
	vc = m/min.				vc = m/min.
			180°				180°
104100	16-32	20-32		104150	16-32	20-32
			Straight				MK
			118° shank				118° shank
Design:				Design:
- relived cone			P	- relived cone			P
- drill point thinning from 3.40 mm				- drill point thinning from 5.50 mm
- steam tempered				- steam tempered
Use:				Use:
Countersink medium, for through bores to DIN EN 20273,				Countersink medium, for through bores to DIN EN 20273,
screw-head counterbores 180° to DIN 974-1 and screws				screw-head counterbores 180° to DIN 974-1 and screws
to DIN 6912, 7513, 7984.				to DIN 6912, 7513, 7984.

d (h9) d (h9) 1 1

104150 PRECITOOL, type N, medium

104100 PRECITOOL, type N, medium

										d	d	l	l	l		f
								for threads	104150	1	3	1	2	3	MT
		d	d	l	l	l		f		mm	mm	mm	mm	mm		mm/U
for threads	104100	1	3	1	2	3
		mm	mm	mm	mm	mm		mm/U M5		5�5	10	168	87	13	1	0�050 - 0�080
M3		3�4	6	93	57	9	0�040 - 0�063	M6		6�6	11	175	94	15	1	0�063 - 0�100
M4		4�5	8	117	75	11	0�050 - 0�080	M8		9�0	15	212	114	19	2	0�080 - 0�125
M5		5�5	10	133	87	13	0�050 - 0�080	M10		11�0	18	228	130	23	2	0�100 - 0�160
M6		6�6	11	142	94	15	0�063 - 0�100	M12		13�5	20	238	140	27	2	0�100 - 0�160
M8		9�0	15	169	114	19	0�080 - 0�125	M16		17�5	26	286	165	35	3	0�125 - 0�200
M10		11�0	18	191	130	23	0�100 - 0�160	M20		22�0	33	334	186	43	4	0�160 - 0�250
