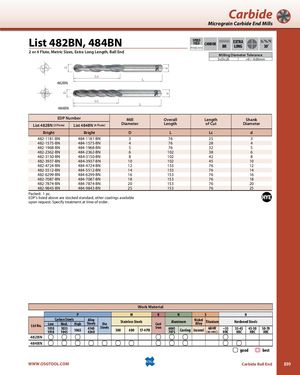

Общий каталог OSG 2018 - 2019 - страница 899

Carbide Micrograin Carbide End Mills List 482BN, 484BN SPEEDFEED CARBIDEP1110-1111BREXTRALONG 30˚ 2 or 4 Flute, Metric Sizes, Extra Long Length, Ball End Milling Diameter Tolerance 3≤D≤25 +0 / -0.05mm 482BN 484BN EDP Number Mill Overall Length Shank List 482BN (2 Flute) List 484BN (4 Flute) Diameter Length of Cut Diameter Bright Bright D L Lc d 482-1181-BN 484-1181-BN 3 76 25 3 482-1575-BN 484-1575-BN 4 76 28 4 482-1968-BN 484-1968-BN 5 76 32 5 482-2362-BN 484-2362-BN 6 102 38 6 482-3150-BN 484-3150-BN 8 102 42 8 482-3937-BN 484-3937-BN 10 102 45 10 482-4724-BN 484-4724-BN 12 153 76 12 482-5512-BN 484-5512-BN 14 153 76 14 482-6299-BN 484-6299-BN 16 153 76 16 482-7087-BN 484-7087-BN 18 153 76 18 482-7874-BN 484-7874-BN 20 153 76 20 482-9843-BN 484-9843-BN 25 153 76 25 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 482BN 484BN good best WWW.OSGTOOL.COM Carbide Ball End 899
