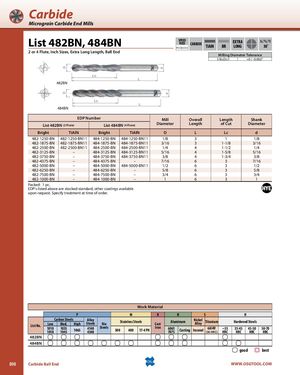

Общий каталог OSG 2018 - 2019 - страница 898

Carbide Micrograin Carbide End Mills List 482BN, 484BN SPEEDFEED CARBIDEP1110-1111TiAINBR EXTRALONG 30˚ 2 or 4 Flute, Inch Sizes, Extra Long Length, Ball End Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" 482BN 484BN EDP Number Mill Overall Length Shank List 482BN (2 Flute) List 484BN (4 Flute) Diameter Length of Cut Diameter Bright TiAlN Bright TiAlN D L Lc d 482-1250-BN 482-1250-BN11 484-1250-BN 484-1250-BN11 1/8 3 1 1/8 482-1875-BN 482-1875-BN11 484-1875-BN 484-1875-BN11 3/16 3 1-1/8 3/16 482-2500-BN 482-2500-BN11 484-2500-BN 484-2500-BN11 1/4 4 1-1/2 1/4 482-3125-BN – 484-3125-BN 484-3125-BN11 5/16 4 1-5/8 5/16 482-3750-BN – 484-3750-BN 484-3750-BN11 3/8 4 1-3/4 3/8 482-4375-BN – 484-4375-BN – 7/16 6 3 7/16 482-5000-BN – 484-5000-BN 484-5000-BN11 1/2 6 3 1/2 482-6250-BN – 484-6250-BN – 5/8 6 3 5/8 482-7500-BN – 484-7500-BN – 3/4 6 3 3/4 482-1000-BN – 484-1000-BN – 1 6 3 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 482BN 484BN good best 898 Carbide Ball End WWW.OSGTOOL.COM
