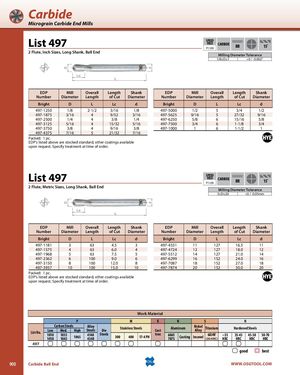

Общий каталог OSG 2018 - 2019 - страница 900

Carbide Micrograin Carbide End Mills List 497 SPEEDFEED CARBIDEP1109BR 15˚ 2 Flute, Inch Sizes, Long Shank, Ball End Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 497-1250 1/8 2-1/2 3/16 1/8 497-5000 1/2 5 3/4 1/2 497-1875 3/16 4 9/32 3/16 497-5625 9/16 5 27/32 9/16 497-2500 1/4 4 3/8 1/4 497-6250 5/8 6 15/16 5/8 497-3125 5/16 4 15/32 5/16 497-7500 3/4 6 1-1/8 3/4 497-3750 3/8 4 9/16 3/8 497-1000 1 6 1-1/2 1 497-4375 7/16 5 21/32 7/16 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 497 SPEEDFEED CARBIDEP1109BR 15˚ 2 Flute, Metric Sizes, Long Shank, Ball End Milling Diameter Tolerance 3≤D≤20 +0 / -0.05mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 497-1181 3 63 4.5 3 497-4331 11 127 16.5 11 497-1575 4 63 6.0 4 497-4724 12 127 18.0 12 497-1968 5 63 7.5 5 497-5512 14 127 21.0 14 497-2362 6 100 9.0 6 497-6299 16 152 24.0 16 497-3150 8 100 12.0 8 497-7087 18 152 27.0 18 497-3937 10 100 15.0 10 497-7874 20 152 30.0 20 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 497 good best 900 Carbide Ball End WWW.OSGTOOL.COM
