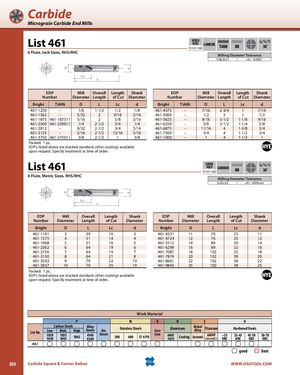

Общий каталог OSG 2018 - 2019 - страница 888

Carbide Micrograin Carbide End Mills List 461 SPEEDFEED CARBIDEP1107-1108TiAINBR 30˚ 6 Flute, Inch Sizes, RHS/RHC Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright TiAlN D L Lc d Bright TiAlN D L Lc d 461-1250 – 1/8 1-1/2 1/2 1/8 461-4375 – 7/16 2-3/4 1 7/16 461-1562 – 5/32 2 9/16 3/16 461-5000 – 1/2 3 1 1/2 461-1875 461-187511 3/16 2 5/8 3/16 461-5625 – 9/16 3-1/2 1-1/8 9/16 461-2500 461-250011 1/4 2-1/2 3/4 1/4 461-6250 – 5/8 3-1/2 1-1/4 5/8 461-2812 – 9/32 2-1/2 3/4 5/16 461-6875 – 11/16 4 1-3/8 3/4 461-3125 – 5/16 2-1/2 13/16 5/16 461-7500 – 3/4 4 1-1/2 3/4 461-3750 461-375011 3/8 2-1/2 1 3/8 461-1000 – 1 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 461 SPEEDFEEDCARBIDEP1107-1108BR 30˚ 6 Flute, Metric Sizes, RHS/RHC Milling Diameter Tolerance 3≤D≤25 +0 / -0.05mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 461-1181 3 39 10 3 461-4331 11 70 25 11 461-1575 4 51 14 4 461-4724 12 76 25 12 461-1968 5 51 16 5 461-5512 14 89 30 14 461-2362 6 64 19 6 461-6299 16 89 32 16 461-2756 7 64 19 7 461-7087 18 102 35 18 461-3150 8 64 21 8 461-7874 20 102 38 20 461-3543 9 70 22 10 461-8661 22 102 38 22 461-3937 10 70 25 10 461-9843 25 102 38 25 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 461 good best 888 Carbide Square & Corner Radius WWW.OSGTOOL.COM
