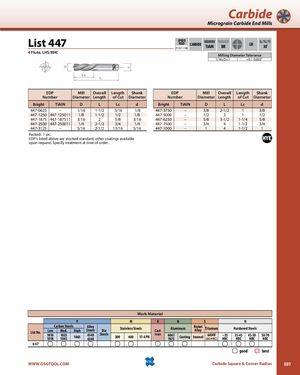

Carbide Micrograin Carbide End Mills List 447 SPEEDFEED CARBIDEP1107-1108TiAINBR LH 30˚ 4 Flute, LHS/RHC Milling Diameter Tolerance 1/16≤D≤1 +0 / -0.002" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright TiAlN D L Lc d Bright TiAlN D L Lc d 447-0625 – 1/16 1-1/2 3/16 1/8 447-3750 – 3/8 2-1/2 1 3/8 447-1250 447-125011 1/8 1-1/2 1/2 1/8 447-5000 – 1/2 3 1 1/2 447-1875 447-187511 3/16 2 5/8 3/16 447-6250 – 5/8 3-1/2 1-1/4 5/8 447-2500 447-250011 1/4 2-1/2 3/4 1/4 447-7500 – 3/4 4 1-1/2 3/4 447-3125 – 5/16 2-1/2 13/16 5/16 447-1000 – 1 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 447 good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 889
