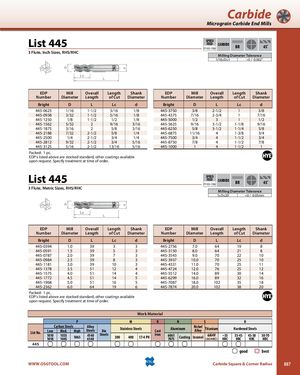

Carbide Micrograin Carbide End Mills List 445 SPEEDFEED CARBIDEP1105-1106BR 45˚ 3 Flute, Inch Sizes, RHS/RHC Milling Diameter Tolerance 1/16≤D≤1 +0 / -0.002" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 445-0625 1/16 1-1/2 3/16 1/8 445-3750 3/8 2-1/2 1 3/8 445-0938 3/32 1-1/2 5/16 1/8 445-4375 7/16 2-3/4 1 7/16 445-1250 1/8 1-1/2 1/2 1/8 445-5000 1/2 3 1 1/2 445-1562 5/32 2 9/16 3/16 445-5625 9/16 3-1/2 1-1/8 9/16 445-1875 3/16 2 5/8 3/16 445-6250 5/8 3-1/2 1-1/4 5/8 445-2188 7/32 2-1/2 5/8 1/4 445-6875 11/16 4 1-3/8 3/4 445-2500 1/4 2-1/2 3/4 1/4 445-7500 3/4 4 1-1/2 3/4 445-2812 9/32 2-1/2 3/4 5/16 445-8750 7/8 4 1-1/2 7/8 445-3125 5/16 2-1/2 13/16 5/16 445-1000 1 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 445 SPEEDFEED CARBIDEP1105-1106BR 45˚ 3 Flute, Metric Sizes, RHS/RHC Milling Diameter Tolerance 1≤D≤20 +0 / -0.05mm EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 445-0394 1.0 39 3 3 445-2756 7.0 64 19 8 445-0591 1.5 39 5 3 445-3150 8.0 64 21 8 445-0787 2.0 39 7 3 445-3543 9.0 70 22 10 445-0984 2.5 39 8 3 445-3937 10.0 70 25 10 445-1181 3.0 39 10 3 445-4331 11.0 70 25 11 445-1378 3.5 51 12 4 445-4724 12.0 76 25 12 445-1575 4.0 51 14 4 445-5512 14.0 89 30 14 445-1772 4.5 51 14 5 445-6299 16.0 89 32 16 445-1968 5.0 51 16 5 445-7087 18.0 102 35 18 445-2362 6.0 64 19 6 445-7874 20.0 102 38 20 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 445 good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 887
