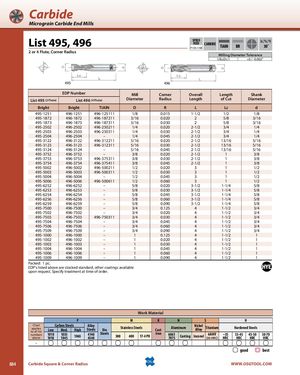

Общий каталог OSG 2018 - 2019 - страница 884

Carbide Micrograin Carbide End Mills List 495, 496 SPEEDFEED CARBIDEP1105-1108TiAINBR 30˚ 2 or 4 Flute, Corner Radius Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" 495 496 EDP Number Mill Corner Overall Length Shank List 495 (2 Flute) List 496 (4 Flute) Diameter Radius Length of Cut Diameter Bright Bright TiAlN D R L Lc d 495-1251 496-1251 496-125111 1/8 0.015 1-1/2 1/2 1/8 495-1872 496-1872 496-187211 3/16 0.020 2 5/8 3/16 495-1873 496-1873 496-187311 3/16 0.030 2 5/8 3/16 495-2502 496-2502 496-250211 1/4 0.020 2-1/2 3/4 1/4 495-2503 496-2503 496-250311 1/4 0.030 2-1/2 3/4 1/4 495-2504 496-2504 – 1/4 0.045 2-1/2 3/4 1/4 495-3122 496-3122 496-312211 5/16 0.020 2-1/2 13/16 5/16 495-3123 496-3123 496-312311 5/16 0.030 2-1/2 13/16 5/16 495-3124 496-3124 – 5/16 0.045 2-1/2 13/16 5/16 495-3752 496-3752 – 3/8 0.020 2-1/2 1 3/8 495-3753 496-3753 496-375311 3/8 0.030 2-1/2 1 3/8 495-3754 496-3754 496-375411 3/8 0.045 2-1/2 1 3/8 495-5002 496-5002 496-500211 1/2 0.020 3 1 1/2 495-5003 496-5003 496-500311 1/2 0.030 3 1 1/2 495-5004 496-5004 – 1/2 0.045 3 1 1/2 495-5006 496-5006 496-500611 1/2 0.060 3 1 1/2 495-6252 496-6252 – 5/8 0.020 3-1/2 1-1/4 5/8 495-6253 496-6253 – 5/8 0.030 3-1/2 1-1/4 5/8 495-6254 496-6254 – 5/8 0.045 3-1/2 1-1/4 5/8 495-6256 496-6256 – 5/8 0.060 3-1/2 1-1/4 5/8 495-6259 496-6259 – 5/8 0.090 3-1/2 1-1/4 5/8 495-7500 496-7500 – 3/4 0.125 4 1-1/2 3/4 495-7502 496-7502 – 3/4 0.020 4 1-1/2 3/4 495-7503 496-7503 496-750311 3/4 0.030 4 1-1/2 3/4 495-7504 496-7504 – 3/4 0.045 4 1-1/2 3/4 495-7506 496-7506 – 3/4 0.060 4 1-1/2 3/4 495-7509 496-7509 – 3/4 0.090 4 1-1/2 3/4 495-1000 496-1000 – 1 0.125 4 1-1/2 1 495-1002 496-1002 – 1 0.020 4 1-1/2 1 495-1003 496-1003 – 1 0.030 4 1-1/2 1 495-1004 496-1004 – 1 0.045 4 1-1/2 1 495-1006 496-1006 – 1 0.060 4 1-1/2 1 495-1009 496-1009 – 1 0.090 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best 884 Carbide Square & Corner Radius WWW.OSGTOOL.COM
