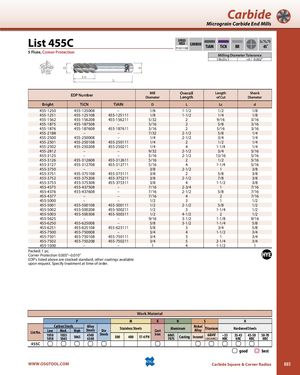

Carbide Micrograin Carbide End Mills List 455C SPEEDFEED CARBIDEP1107-1108TiAINTiCN BR 45˚ 5 Flute, Corner Protection Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" EDP Number Mill Overall Length ShankDiameterLengthof CutDiameter Bright TiCN TiAlN D L Lc d 455-1250 455-125008 – 1/8 1-1/2 1/2 1/8 455-1251 455-125108 455-125111 1/8 1-1/2 1/4 1/8 455-1562 455-156208 455-156211 5/32 2 9/16 3/16 455-1875 455-187508 – 3/16 2 5/8 3/16 455-1876 455-187608 455-187611 3/16 2 5/16 3/16 455-2188 – – 7/32 2-1/2 5/8 1/4 455-2500 455-250008 – 1/4 2-1/2 3/4 1/4 455-2501 455-250108 455-250111 1/4 2 1/2 1/4 455-2502 455-250208 455-250211 1/4 4 1-1/4 1/4 455-2812 – – 9/32 2-1/2 3/4 5/16 455-3125 – – 5/16 2-1/2 13/16 5/16 455-3126 455-312608 455-312611 5/16 2 1/2 5/16 455-3127 455-312708 455-312711 5/16 4 1-1/4 5/16 455-3750 – – 3/8 2-1/2 1 3/8 455-3751 455-375108 455-375111 3/8 2 5/8 3/8 455-3752 455-375208 455-375211 3/8 2-1/2 7/8 3/8 455-3753 455-375308 455-375311 3/8 4 1-1/2 3/8 455-4375 455-437508 – 7/16 2-3/4 1 7/16 455-4376 455-437608 – 7/16 2-1/2 5/8 7/16 455-4377 – – 7/16 4 2 7/16 455-5000 – – 1/2 3 1 1/2 455-5001 455-500108 455-500111 1/2 2-1/2 5/8 1/2 455-5002 455-500208 455-500211 1/2 3 1-1/4 1/2 455-5003 455-500308 455-500311 1/2 4-1/2 2 1/2 455-5625 – – 9/16 3-1/2 1-1/8 9/16 455-6250 455-625008 – 5/8 3-1/2 1-1/4 5/8 455-6251 455-625108 455-625111 5/8 3 3/4 5/8 455-7500 455-750008 – 3/4 4 1-1/2 3/4 455-7501 455-750108 455-750111 3/4 3 1 3/4 455-7502 455-750208 455-750211 3/4 5 2-1/4 3/4 455-1000 – – 1 4 1-1/2 1 Packed: 1 pc. Corner Protection 0.005”~0.010” EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 455C good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 885
