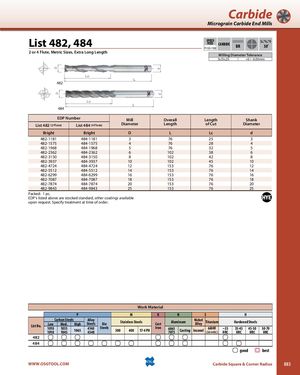

Carbide Micrograin Carbide End Mills List 482, 484 SPEEDFEED CARBIDEP1105-1108BR 30˚ 2 or 4 Flute, Metric Sizes, Extra Long Length Milling Diameter Tolerance 3≤D≤25 +0 / -0.05mm 482 484 EDP Number Mill Overall Length Shank List 482 (2 Flute) List 484 (4 Flute) Diameter Length of Cut Diameter Bright Bright D L Lc d 482-1181 484-1181 3 76 25 3 482-1575 484-1575 4 76 28 4 482-1968 484-1968 5 76 32 5 482-2362 484-2362 6 102 38 6 482-3150 484-3150 8 102 42 8 482-3937 484-3937 10 102 45 10 482-4724 484-4724 12 153 76 12 482-5512 484-5512 14 153 76 14 482-6299 484-6299 16 153 76 16 482-7087 484-7087 18 153 76 18 482-7874 484-7874 20 153 76 20 482-9843 484-9843 25 153 76 25 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 482 484 good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 883
