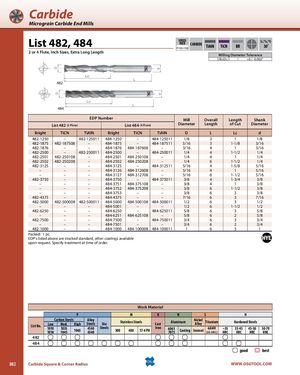

Carbide Micrograin Carbide End Mills List 482, 484 SPEEDFEED CARBIDEP1105-1108TiAINTiCN BR 30˚ 2 or 4 Flute, Inch Sizes, Extra Long Length Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" 482 484 EDP Number Mill Overall Length Shank List 482 (2 Flute) List 484 (4 Flute) Diameter Length of Cut Diameter Bright TiCN TiAlN Bright TiCN TiAlN D L Lc d 482-1250 – 482-125011 484-1250 – 484-125011 1/8 3 1 1/8 482-1875 482-187508 – 484-1875 – 484-187511 3/16 3 1-1/8 3/16 482-1876 – – 484-1876 484-187608 – 3/16 4 1 3/16 482-2500 – 482-250011 484-2500 – 484-250011 1/4 4 1-1/2 1/4 482-2501 482-250108 – 484-2501 484-250108 – 1/4 4 1 1/4 482-2502 482-250208 – 484-2502 484-250208 – 1/4 6 1-1/2 1/4 482-3125 – – 484-3125 – 484-312511 5/16 4 1-5/8 5/16 – – – 484-3126 484-312608 – 5/16 4 1 5/16 – – – 484-3127 484-312708 – 5/16 6 1-1/2 5/16 482-3750 – – 484-3750 – 484-375011 3/8 4 1-3/4 3/8 – – – 484-3751 484-375108 – 3/8 4 1 3/8 – – – 484-3752 484-375208 – 3/8 6 1-1/2 3/8 – – – 484-3753 – – 3/8 6 3 3/8 482-4375 – – 484-4375 – – 7/16 6 3 7/16 482-5000 482-500008 482-500011 484-5000 484-500108 484-500011 1/2 6 3 1/2 – – – 484-5001 – – 1/2 6 1-1/2 1/2 482-6250 – – 484-6250 – 484-625011 5/8 6 3 5/8 – – – 484-6251 484-625108 – 5/8 6 2 5/8 482-7500 – – 484-7500 – 484-750011 3/4 6 3 3/4 – – – 484-7501 – – 3/4 6 2 3/4 482-1000 – – 484-1000 484-100008 484-100011 1 6 3 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 482 484 good best 882 Carbide Square & Corner Radius WWW.OSGTOOL.COM
