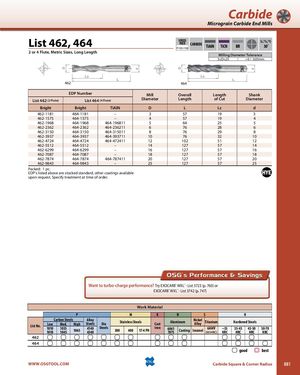

Carbide Micrograin Carbide End Mills List 462, 464 SPEEDFEED CARBIDEP1105-1108TiAINTiCN BR 30˚ 2 or 4 Flute, Metric Sizes, Long Length Milling Diameter Tolerance 3≤D≤25 +0 / -0.05mm 462 464 EDP Number Mill Overall Length Shank List 462 (2 Flute) List 464 (4 Flute) Diameter Length of Cut Diameter Bright Bright TiAlN D L Lc d 462-1181 464-1181 – 3 57 19 3 462-1575 464-1575 – 4 57 19 4 462-1968 464-1968 464-196811 5 64 25 5 462-2362 464-2362 464-236211 6 76 28 6 462-3150 464-3150 464-315011 8 76 29 8 462-3937 464-3937 464-393711 10 76 32 10 462-4724 464-4724 464-472411 12 102 51 12 462-5512 464-5512 – 14 127 57 14 462-6299 464-6299 – 16 127 57 16 462-7087 464-7087 – 18 127 57 18 462-7874 464-7874 464-787411 20 127 57 20 462-9843 464-9843 – 25 127 57 25 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Want to turbo-charge performance? Try EXOCARB® WXL® - List 3723 (p. 760) or EXOCARB® WXL® - List 3742 (p. 747) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 462 464 good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 881
