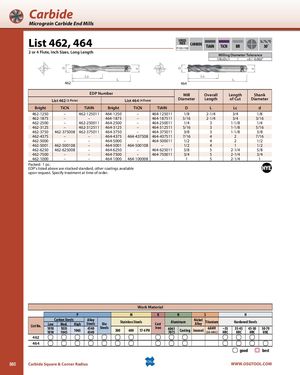

Carbide Micrograin Carbide End Mills List 462, 464 SPEEDFEED CARBIDEP1105-1108TiAINTiCN BR 30˚ 2 or 4 Flute, Inch Sizes, Long Length Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" 462 464 EDP Number Mill Overall Length Shank List 462 (2 Flute) List 464 (4 Flute) Diameter Length of Cut Diameter Bright TiCN TiAlN Bright TiCN TiAlN D L Lc d 462-1250 – 462-125011 464-1250 – 464-125011 1/8 2-1/4 3/4 1/8 462-1875 – – 464-1875 – 464-187511 3/16 2-1/4 3/4 3/16 462-2500 – 462-250011 464-2500 – 464-250011 1/4 3 1-1/8 1/4 462-3125 – 462-312511 464-3125 – 464-312511 5/16 3 1-1/8 5/16 462-3750 462-375008 462-375011 464-3750 – 464-375011 3/8 3 1-1/8 3/8 462-4375 – – 464-4375 464-437508 464-437511 7/16 4 2 7/16 462-5000 – – 464-5000 – 464-500011 1/2 4 2 1/2 462-5001 462-500108 – 464-5001 464-500108 – 1/2 4 1 1/2 462-6250 462-625008 – 464-6250 – 464-625011 5/8 5 2-1/4 5/8 462-7500 – – 464-7500 – 464-750011 3/4 5 2-1/4 3/4 462-1000 – – 464-1000 464-100008 – 1 5 2-1/4 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 462 464 good best 880 Carbide Square & Corner Radius WWW.OSGTOOL.COM
