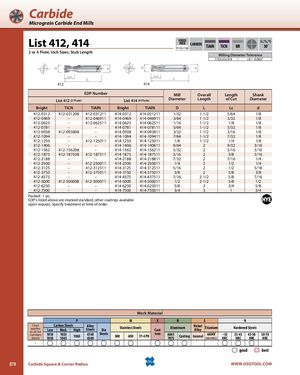

Carbide Micrograin Carbide End Mills List 412, 414 SPEEDFEED CARBIDEP1105-1108TiAINTiCN BR 30˚ 2 or 4 Flute, Inch Sizes, Stub Length Milling Diameter Tolerance 1/32≤D≤3/4 +0 / -0.002" 412 414 EDP Number Mill Overall Length Shank List 412 (2 Flute) List 414 (4 Flute) Diameter Length of Cut Diameter Bright TiCN TiAlN Bright TiAlN D L Lc d 412-0312 412-031208 412-031211 414-0312 414-031211 1/32 1-1/2 5/64 1/8 412-0469 – 412-046911 414-0469 414-046911 3/64 1-1/2 3/32 1/8 412-0625 – 412-062511 414-0625 414-062511 1/16 1-1/2 1/8 1/8 412-0781 – – 414-0781 414-078111 5/64 1-1/2 5/32 1/8 412-0938 412-093808 – 414-0938 414-093811 3/32 1-1/2 3/16 1/8 412-1094 – – 414-1094 414-109411 7/64 1-1/2 7/32 1/8 412-1250 – 412-125011 414-1250 414-125011 1/8 1-1/2 1/4 1/8 412-1406 – – 414-1406 414-140611 9/64 2 9/32 3/16 412-1562 412-156208 – 414-1562 414-156211 5/32 2 5/16 3/16 412-1875 412-187508 412-187511 414-1875 414-187511 3/16 2 3/8 3/16 412-2188 – – 414-2188 414-218811 7/32 2 7/16 1/4 412-2500 – 412-250011 414-2500 414-250011 1/4 2 1/2 1/4 412-3125 – 412-312511 414-3125 414-312511 5/16 2 1/2 5/16 412-3750 – 412-375011 414-3750 414-375011 3/8 2 5/8 3/8 412-4375 – – 414-4375 414-437511 7/16 2-1/2 5/8 7/16 412-5000 412-500008 412-500011 414-5000 414-500011 1/2 2-1/2 5/8 1/2 412-6250 – – 414-6250 414-625011 5/8 3 3/4 5/8 412-7500 – – 414-7500 414-750011 3/4 3 1 3/4 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best 878 Carbide Square & Corner Radius WWW.OSGTOOL.COM
