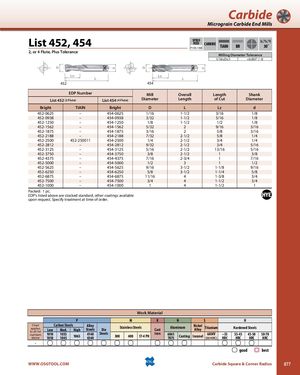

Общий каталог OSG 2018 - 2019 - страница 877

Carbide Micrograin Carbide End Mills List 452, 454 SPEEDFEED CARBIDEP1105-1108TiAINBR 30˚ 2, or 4 Flute, Plus Tolerance Milling Diameter Tolerance 1/16≤D≤1 +0.001” / -0 452 454 EDP Number Mill Overall Length Shank List 452 (2 Flute) List 454 (4 Flute) Diameter Length of Cut Diameter Bright TiAlN Bright D L Lc d 452-0625 – 454-0625 1/16 1-1/2 3/16 1/8 452-0938 – 454-0938 3/32 1-1/2 5/16 1/8 452-1250 – 454-1250 1/8 1-1/2 1/2 1/8 452-1562 – 454-1562 5/32 2 9/16 3/16 452-1875 – 454-1875 3/16 2 5/8 3/16 452-2188 – 454-2188 7/32 2-1/2 5/8 1/4 452-2500 452-250011 454-2500 1/4 2-1/2 3/4 1/4 452-2812 – 454-2812 9/32 2-1/2 3/4 5/16 452-3125 – 454-3125 5/16 2-1/2 13/16 5/16 452-3750 – 454-3750 3/8 2-1/2 1 3/8 452-4375 – 454-4375 7/16 2-3/4 1 7/16 452-5000 – 454-5000 1/2 3 1 1/2 452-5625 – 454-5625 9/16 3-1/2 1-1/8 9/16 452-6250 – 454-6250 5/8 3-1/2 1-1/4 5/8 452-6875 – 454-6875 11/16 4 1-3/8 3/4 452-7500 – 454-7500 3/4 4 1-1/2 3/4 452-1000 – 454-1000 1 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 877
