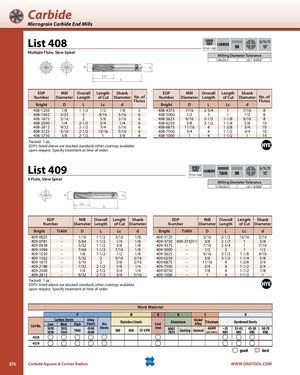

Общий каталог OSG 2018 - 2019 - страница 876

Carbide Micrograin Carbide End Mills List 408 SPEEDFEED CARBIDEP1107-1108BR 15˚ Multiple Flute, Slow Spiral Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.002" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter No. of Number Diameter Length of Cut Diameter No. of Flutes Flutes Bright D L Lc d Bright D L Lc d 408-1250 1/8 1-1/2 1/2 1/8 5 408-4375 7/16 2-3/4 1 7/16 8 408-1562 5/32 2 9/16 3/16 6 408-5000 1/2 3 1 1/2 8 408-1875 3/16 2 5/8 3/16 6 408-5625 9/16 3-1/2 1-1/8 9/16 8 408-2500 1/4 2-1/2 3/4 1/4 6 408-6250 5/8 3-1/2 1-1/4 5/8 10 408-2812 9/32 2-1/2 3/4 5/16 6 408-6875 11/16 4 1-3/8 3/4 10 408-3125 5/16 2-1/2 13/16 5/16 6 408-7500 3/4 4 1-1/2 3/4 10 408-3750 3/8 2-1/2 1 3/8 8 408-1000 1 4 1-1/2 1 14 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 409 SPEEDFEED CARBIDEP1107-1108TiAINBR 15˚ 4 Flute, Slow Spiral Milling Diameter Tolerance 1/16≤D≤1 +0 / -0.002" EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright TiAlN D L Lc d Bright TiAlN D L Lc d 409-0625 – 1/16 1-1/2 3/16 1/8 409-3125 – 5/16 2-1/2 13/16 5/16 409-0781 – 5/64 1-1/2 1/4 1/8 409-3750 409-375011 3/8 2-1/2 1 3/8 409-0938 – 3/32 1-1/2 3/8 1/8 409-4375 – 7/16 2-3/4 1 7/16 409-1094 – 7/64 1-1/2 7/16 1/8 409-5000 – 1/2 3 1 1/2 409-1250 – 1/8 1-1/2 1/2 1/8 409-5625 – 9/16 3-1/2 1-1/8 9/16 409-1562 – 5/32 2 9/16 3/16 409-6250 – 5/8 3-1/2 1-1/4 5/8 409-1875 – 3/16 2 5/8 3/16 409-6875 – 11/16 4 1-3/8 3/4 409-2188 – 7/32 2-1/2 5/8 1/4 409-7500 – 3/4 4 1-1/2 3/4 409-2500 – 1/4 2-1/2 3/4 1/4 409-8750 – 7/8 4 1-1/2 7/8 409-2812 – 9/32 2-1/2 3/4 5/16 409-1000 – 1 4 1-1/2 1 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 408 409 good best 876 Carbide Square & Corner Radius WWW.OSGTOOL.COM Single End Carbide
