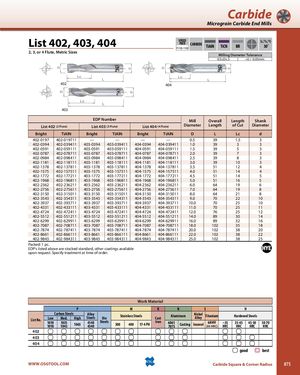

Общий каталог OSG 2018 - 2019 - страница 875

Carbide Micrograin Carbide End Mills List 402, 403, 404 SPEEDFEED CARBIDEP1105-1108TiAINTiCN BR 30˚ 2, 3, or 4 Flute, Metric Sizes Milling Diameter Tolerance 0.5≤D≤3 +0 / -0.05mm 402 404 403 EDP Number Mill Overall Length Shank List 402 (2 Flute) List 403 (3 Flute) List 404 (4 Flute) Diameter Length of Cut Diameter Bright TiAlN Bright TiAlN Bright TiAlN D L Lc d 402-0197 402-019711 — — — — 0.5 39 1.5 3 402-0394 402-039411 403-0394 403-039411 404-0394 404-039411 1.0 39 3 3 402-0591 402-059111 403-0591 403-059111 404-0591 404-059111 1.5 39 5 3 402-0787 402-078711 403-0787 403-078711 404-0787 404-078711 2.0 39 7 3 402-0984 402-098411 403-0984 403-098411 404-0984 404-098411 2.5 39 8 3 402-1181 402-118111 403-1181 403-118111 404-1181 404-118111 3.0 39 10 3 402-1378 402-137811 403-1378 403-137811 404-1378 404-137811 3.5 51 12 4 402-1575 402-157511 403-1575 403-157511 404-1575 404-157511 4.0 51 14 4 402-1772 402-177211 403-1772 403-177211 404-1772 404-177211 4.5 51 14 5 402-1968 402-196811 403-1968 403-196811 404-1968 404-196811 5.0 51 16 5 402-2362 402-236211 403-2362 403-236211 404-2362 404-236211 6.0 64 19 6 402-2756 402-275611 403-2756 403-275611 404-2756 404-275611 7.0 64 19 8 402-3150 402-315011 403-3150 403-315011 404-3150 404-315011 8.0 64 21 8 402-3543 402-354311 403-3543 403-354311 404-3543 404-354311 9.0 70 22 10 402-3937 402-393711 403-3937 403-393711 404-3937 404-393711 10.0 70 25 10 402-4331 402-433111 403-4331 403-433111 404-4331 404-433111 11.0 70 25 11 402-4724 402-472411 403-4724 403-472411 404-4724 404-472411 12.0 76 25 12 402-5512 402-551211 403-5512 403-551211 404-5512 404-551211 14.0 89 30 14 402-6299 402-629911 403-6299 403-629911 404-6299 404-629911 16.0 89 32 16 402-7087 402-708711 403-7087 403-708711 404-7087 404-708711 18.0 102 35 18 402-7874 402-787411 403-7874 403-787411 404-7874 404-787411 20.0 102 38 20 402-8661 402-866111 403-8661 403-866111 404-8661 404-866111 22.0 102 38 22 402-9843 402-984311 403-9843 403-984311 404-9843 404-984311 25.0 102 38 25 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 402 403 404 good best WWW.OSGTOOL.COM Carbide Square & Corner Radius 875
