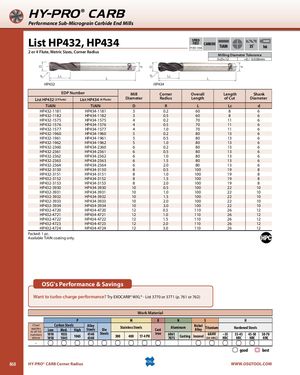

D d D d HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP432, HP434 SPEEDFEED CARBIDEP1101-1104TiAIN SHANK35˚h6 2 or 4 Flute, Metric Sizes, Corner Radius Milling Diameter Tolerance 3≤D≤12 +0 / -0.038mm R Lc L R Lc L HP432 HP434 EDP Number Mill Corner Overall Length Shank List HP432 (2 Flute) List HP434 (4 Flute) Diameter Radius Length of Cut Diameter TiAlN TiAlN D R L Lc d HP432-1181 HP434-1181 3 0.2 60 8 6 HP432-1182 HP434-1182 3 0.5 60 8 6 HP432-1575 HP434-1575 4 0.2 70 11 6 HP432-1576 HP434-1576 4 0.5 70 11 6 HP432-1577 HP434-1577 4 1.0 70 11 6 HP432-1960 HP434-1960 5 0.2 80 13 6 HP432-1961 HP434-1961 5 0.5 80 13 6 HP432-1962 HP434-1962 5 1.0 80 13 6 HP432-2360 HP434-2360 6 0.2 80 13 6 HP432-2361 HP434-2361 6 0.5 80 13 6 HP432-2362 HP434-2362 6 1.0 80 13 6 HP432-2363 HP434-2363 6 1.5 80 13 6 HP432-2364 HP434-2364 6 2.0 80 13 6 HP432-3150 HP434-3150 8 0.5 100 19 8 HP432-3151 HP434-3151 8 1.0 100 19 8 HP432-3152 HP434-3152 8 1.5 100 19 8 HP432-3153 HP434-3153 8 2.0 100 19 8 HP432-3930 HP434-3930 10 0.5 100 22 10 HP432-3931 HP434-3931 10 1.0 100 22 10 HP432-3932 HP434-3932 10 1.5 100 22 10 HP432-3933 HP434-3933 10 2.0 100 22 10 HP432-3934 HP434-3934 10 3.0 100 22 10 HP432-4720 HP434-4720 12 0.5 110 26 12 HP432-4721 HP434-4721 12 1.0 110 26 12 HP432-4722 HP434-4722 12 1.5 110 26 12 HP432-4723 HP434-4723 12 2.0 110 26 12 HP432-4724 HP434-4724 12 3.0 110 26 12 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3770 or 3771 (p. 761 or 762) Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045High1065SteelsDie4140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best 868 HY-PRO® CARB Corner Radius WWW.OSGTOOL.COM
