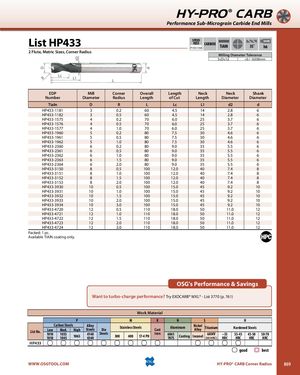

D d2 d HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP433 SPEEDFEED CARBIDEP1101-1104TiAIN SHANK35˚h6 2 Flute, Metric Sizes, Corner Radius Milling Diameter Tolerance 3≤D≤12 +0 / -0.038mm R Lc L1 L EDP Mill Corner Overall Length Neck Neck Shank Number Diameter Radius Length of Cut Length Diameter Diameter Tialn D R L Lc L1 d2 d HP433-1181 3 0.2 60 4.5 14 2.8 6 HP433-1182 3 0.5 60 4.5 14 2.8 6 HP433-1575 4 0.2 70 6.0 25 3.7 6 HP433-1576 4 0.5 70 6.0 25 3.7 6 HP433-1577 4 1.0 70 6.0 25 3.7 6 HP433-1960 5 0.2 80 7.5 30 4.6 6 HP433-1961 5 0.5 80 7.5 30 4.6 6 HP433-1962 5 1.0 80 7.5 30 4.6 6 HP433-2360 6 0.2 80 9.0 35 5.5 6 HP433-2361 6 0.5 80 9.0 35 5.5 6 HP433-2362 6 1.0 80 9.0 35 5.5 6 HP433-2363 6 1.5 80 9.0 35 5.5 6 HP433-2364 6 2.0 80 9.0 35 5.5 6 HP433-3150 8 0.5 100 12.0 40 7.4 8 HP433-3151 8 1.0 100 12.0 40 7.4 8 HP433-3152 8 1.5 100 12.0 40 7.4 8 HP433-3153 8 2.0 100 12.0 40 7.4 8 HP433-3930 10 0.5 100 15.0 45 9.2 10 HP433-3931 10 1.0 100 15.0 45 9.2 10 HP433-3932 10 1.5 100 15.0 45 9.2 10 HP433-3933 10 2.0 100 15.0 45 9.2 10 HP433-3934 10 3.0 100 15.0 45 9.2 10 HP433-4720 12 0.5 110 18.0 50 11.0 12 HP433-4721 12 1.0 110 18.0 50 11.0 12 HP433-4722 12 1.5 110 18.0 50 11.0 12 HP433-4723 12 2.0 110 18.0 50 11.0 12 HP433-4724 12 3.0 110 18.0 50 11.0 12 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3770 (p. 761) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP433 good best WWW.OSGTOOL.COM HY-PRO® CARB Corner Radius 869
