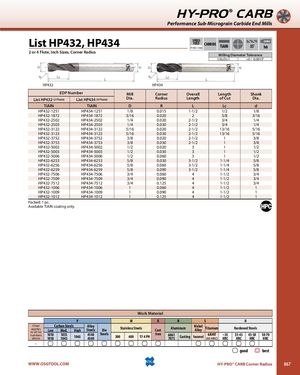

Общий каталог OSG 2018 - 2019 - страница 867

D d D d HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP432, HP434 SPEEDFEED CARBIDEP1101-1104TiAIN SHANK35˚h6 2 or 4 Flute, Inch Sizes, Corner Radius Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.0015" R Lc L R Lc L HP432 HP434 EDP Number Mill Corner Overall Length Shank List HP432 (2 Flute) List HP434 (4 Flute) Dia. Radius Length of Cut Dia. TiAlN TiAlN D R L Lc d HP432-1251 HP434-1251 1/8 0.015 1-1/2 1/2 1/8 HP432-1872 HP434-1872 3/16 0.020 2 5/8 3/16 HP432-2502 HP434-2502 1/4 0.020 2-1/2 3/4 1/4 HP432-2503 HP434-2503 1/4 0.030 2-1/2 3/4 1/4 HP432-3122 HP434-3122 5/16 0.020 2-1/2 13/16 5/16 HP432-3123 HP434-3123 5/16 0.030 2-1/2 13/16 5/16 HP432-3752 HP434-3752 3/8 0.020 2-1/2 1 3/8 HP432-3753 HP434-3753 3/8 0.030 2-1/2 1 3/8 HP432-5002 HP434-5002 1/2 0.020 3 1 1/2 HP432-5003 HP434-5003 1/2 0.030 3 1 1/2 HP432-5006 HP434-5006 1/2 0.060 3 1 1/2 HP432-6253 HP434-6253 5/8 0.030 3-1/2 1-1/4 5/8 HP432-6256 HP434-6256 5/8 0.060 3-1/2 1-1/4 5/8 HP432-6259 HP434-6259 5/8 0.090 3-1/2 1-1/4 5/8 HP432-7506 HP434-7506 3/4 0.060 4 1-1/2 3/4 HP432-7509 HP434-7509 3/4 0.090 4 1-1/2 3/4 HP432-7512 HP434-7512 3/4 0.125 4 1-1/2 3/4 HP432-1006 HP434-1006 1 0.060 4 1-1/2 1 HP432-1009 HP434-1009 1 0.090 4 1-1/2 1 HP432-1012 HP434-1012 1 0.125 4 1-1/2 1 Packed: 1 pc. Available TiAlN coating only. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045High1065SteelsDie4140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best WWW.OSGTOOL.COM HY-PRO® CARB Corner Radius 867
