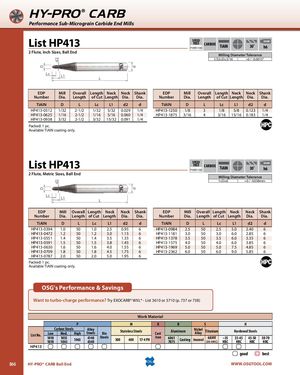

Общий каталог OSG 2018 - 2019 - страница 866

DD d2d2 dd HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP413 SPEEDFEED CARBIDEP1099-1100TiAIN SHANK30˚h6 2 Flute, Inch Sizes, Ball End Milling Diameter Tolerance 1/32≤D≤3/16 +0 / -0.0015" Lc L1 L EDP Mill Overall Length Neck Neck Shank EDP Mill Overall Length Neck Neck Shank Number Dia. Length of Cut Length Dia. Dia. Number Dia. Length of Cut Length Dia. Dia. TiAlN D L Lc L1 d2 d TiAlN D L Lc L1 d2 d HP413-0312 1/32 2-1/2 1/32 5/32 0.029 1/4 HP413-1250 1/8 3 1/8 5/8 0.123 1/4 HP413-0625 1/16 2-1/2 1/16 5/16 0.060 1/4 HP413-1875 3/16 4 3/16 15/16 0.183 1/4 HP413-0938 3/32 2-1/2 3/32 15/32 0.091 1/4 Packed: 1 pc. Available TiAlN coating only. List HP413 SPEEDFEED CARBIDEP1099-1100TiAIN SHANK30˚h6 2 Flute, Metric Sizes, Ball End Milling Diameter Tolerance 1≤D≤6 +0 / -0.038mm Lc L1 L EDP Mill Overall Length Neck Neck Shank EDP Mill Overall Length Neck Neck Shank Number Dia. Length of Cut Length Dia. Dia. Number Dia. Length of Cut Length Dia. Dia. TiAlN D L Lc L1 d2 d TiAlN D L Lc L1 d2 d HP413-0394 1.0 50 1.0 2.5 0.95 6 HP413-0984 2.5 50 2.5 5.0 2.40 6 HP413-0472 1.2 50 1.2 3.0 1.15 6 HP413-1181 3.0 50 3.0 6.0 2.85 6 HP413-0551 1.4 50 1.4 3.5 1.35 6 HP413-1378 3.5 50 3.5 6.0 3.35 6 HP413-0591 1.5 50 1.5 3.8 1.45 6 HP413-1575 4.0 50 4.0 6.0 3.85 6 HP413-0630 1.6 50 1.6 4.0 1.55 6 HP413-1969 5.0 50 5.0 7.5 4.85 6 HP413-0709 1.8 50 1.8 4.5 1.75 6 HP413-2362 6.0 50 6.0 9.0 5.85 6 HP413-0787 2.0 50 2.0 5.0 1.95 6 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3610 or 3710 (p. 737 or 738) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP413 good best 866 HY-PRO® CARB Ball End WWW.OSGTOOL.COM
