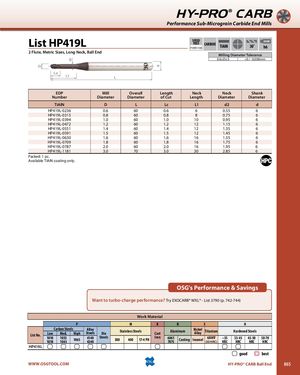

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP419L SPEEDFEED CARBIDEP1099-1100TiAIN SHANK30˚h6 2 Flute, Metric Sizes, Long Neck, Ball End Milling Diameter Tolerance 0.6≤D≤3 +0 / -0.038mm EDP Mill Overall Length Neck Neck Shank Number Diameter Diameter of Cut Length Diameter Diameter TiAlN D L Lc L1 d2 d HP419L-0236 0.6 60 0.6 6 0.55 6 HP419L-0315 0.8 60 0.8 8 0.75 6 HP419L-0394 1.0 60 1.0 10 0.95 6 HP419L-0472 1.2 60 1.2 12 1.15 6 HP419L-0551 1.4 60 1.4 12 1.35 6 HP419L-0591 1.5 60 1.5 12 1.45 6 HP419L-0630 1.6 60 1.6 16 1.55 6 HP419L-0709 1.8 60 1.8 16 1.75 6 HP419L-0787 2.0 60 2.0 16 1.95 6 HP419L-1181 3.0 70 3.0 30 2.85 6 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3790 (p. 742-744) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP419L good best WWW.OSGTOOL.COM HY-PRO® CARB Ball End 865
