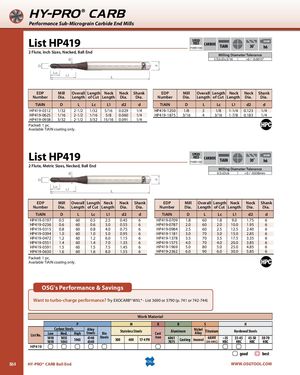

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP419 SPEEDFEED CARBIDEP1099-1100TiAIN SHANK30˚h6 2 Flute, Inch Sizes, Necked, Ball End Milling Diameter Tolerance 1/32≤D≤3/16 +0 / -0.0015" EDP Mill Overall Length Neck Neck Shank EDP Mill Overall Length Neck Neck Shank Number Dia. Length of Cut Length Dia. Dia. Number Dia. Length of Cut Length Dia. Dia. TiAlN D L Lc L1 d2 d TiAlN D L Lc L1 d2 d HP419-0312 1/32 2-1/2 1/32 5/16 0.029 1/4 HP419-1250 1/8 3 1/8 1-1/4 0.123 1/4 HP419-0625 1/16 2-1/2 1/16 5/8 0.060 1/4 HP419-1875 3/16 4 3/16 1-7/8 0.183 1/4 HP419-0938 3/32 2-1/2 3/32 15/16 0.091 1/4 Packed: 1 pc. Available TiAlN coating only. List HP419 SPEEDFEED CARBIDEP1099-1100TiAIN SHANK30˚h6 2 Flute, Metric Sizes, Necked, Ball End Milling Diameter Tolerance 0.5≤D≤6 +0 / -0.038mm EDP Mill Overall Length Neck Neck Shank EDP Mill Overall Length Neck Neck Shank Number Dia. Length of Cut Length Dia. Dia. Number Dia. Length of Cut Length Dia. Dia. TiAlN D L Lc L1 d2 d TiAlN D L Lc L1 d2 d HP419-0197 0.5 60 0.5 2.5 0.45 6 HP419-0709 1.8 60 1.8 9.0 1.75 6 HP419-0236 0.6 60 0.6 3.0 0.55 6 HP419-0787 2.0 60 2.0 10.0 1.95 6 HP419-0315 0.8 60 0.8 4.0 0.75 6 HP419-0984 2.5 60 2.5 12.5 2.40 6 HP419-0394 1.0 60 1.0 5.0 0.95 6 HP419-1181 3.0 70 3.0 15.0 2.85 6 HP419-0472 1.2 60 1.2 6.0 1.15 6 HP419-1378 3.5 70 3.5 17.5 3.35 6 HP419-0551 1.4 60 1.4 7.0 1.35 6 HP419-1575 4.0 70 4.0 20.0 3.85 6 HP419-0591 1.5 60 1.5 7.5 1.45 6 HP419-1969 5.0 80 5.0 25.0 4.85 6 HP419-0630 1.6 60 1.6 8.0 1.55 6 HP419-2362 6.0 90 6.0 30.0 5.85 6 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Want to turbo-charge performance? Try EXOCARB® WXL® - List 3690 or 3790 (p. 741 or 742-744) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP419 good best 864 HY-PRO® CARB Ball End WWW.OSGTOOL.COM
