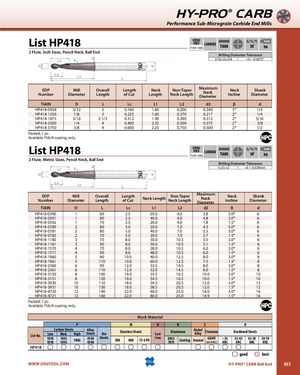

HY-PRO® CARB Performance Sub-Micrograin Carbide End Mills List HP418 SPEEDFEED CARBIDEP1097-1098TiAIN SHANK30˚h6 2 Flute, Inch Sizes, Pencil Neck, Ball End Milling Diameter Tolerance 3/32≤D≤3/8 +0 / -0.0015" EDPNumber Mill OverallDiameterLengthLengthof Cut NeckLength Non-TaperNeck LengthMaximumNeckDiameter NeckIncline ShankDiameter TiAlN D L Lc L1 L2 d2 β d HP418-0938 3/32 3 0.160 1.60 0.200 0.240 3° 1/4 HP418-1250 1/8 3 0.225 1.60 0.270 0.217 2° 1/4 HP418-1875 3/16 3-1/2 0.312 1.90 0.390 0.312 2° 5/16 HP418-2500 1/4 4 0.400 2.25 0.500 0.375 2° 3/8 HP418-3750 3/8 4 0.600 2.25 0.750 0.500 2° 1/2 Packed: 1 pc. Available TIALN coating only. List HP418 SPEEDFEED CARBIDEP1097-1098TiAIN SHANK30˚h6 2 Flute, Metric Sizes, Pencil Neck, Ball End Milling Diameter Tolerance 1≤D≤12 +0 / -0.038mm EDPNumber Mill OverallDiameterLengthLengthof CutNeck LengthNon-TaperNeck LengthMaximumNeckDiameter NeckIncline ShankDiameter TiAlN D L Lc L1 L2 d2 B d HP418-0390 1 60 2.5 20.0 4.0 3.8 5.0° 6 HP418-0391 1 80 2.5 40.0 4.0 4.8 3.0° 6 HP418-0392 1 70 2.5 20.0 4.0 1.8 1.5° 6 HP418-0780 2 60 5.0 20.0 7.0 4.3 5.0° 6 HP418-0781 2 80 5.0 40.0 7.0 5.5 3.0° 6 HP418-0782 2 70 5.0 20.0 7.0 2.7 1.5° 6 HP418-1180 3 70 8.0 30.0 10.5 5.0 3.0° 6 HP418-1181 3 90 8.0 50.0 10.5 5.1 1.5° 6 HP418-1570 4 70 8.0 28.0 10.5 6.0 3.0° 6 HP418-1571 4 90 8.0 48.0 10.5 6.0 1.5° 6 HP418-1960 5 90 10.0 40.0 12.5 8.0 3.0° 8 HP418-1961 5 110 10.0 60.0 12.5 7.5 1.5° 8 HP418-2360 6 90 12.0 33.5 14.5 8.0 3.0° 8 HP418-2361 6 110 12.0 52.0 14.5 8.0 1.5° 8 HP418-3150 8 100 14.0 35.5 16.5 10.0 3.0° 10 HP418-3151 8 120 14.0 54.5 16.5 10.0 1.5° 10 HP418-3930 10 110 18.0 39.5 20.5 12.0 3.0° 12 HP418-3931 10 130 18.0 58.5 20.5 12.0 1.5° 12 HP418-4720 12 140 22.0 60.0 25.0 16.0 3.0° 16 HP418-4721 12 160 22.0 80.0 25.0 14.9 1.5° 16 Packed: 1 pc. Available TIALN coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC HP418 good best WWW.OSGTOOL.COM HY-PRO® CARB Ball End 863
